Front Floor Console Replacement

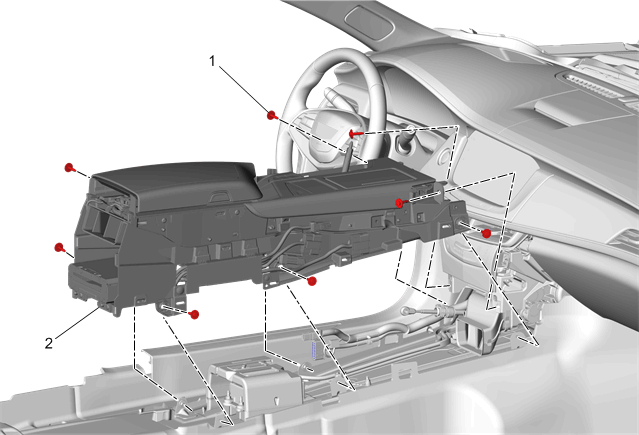

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side Transmission Control Replacement
1	Front Floor Console Bolt to Floor Panel Tunnel Panel [8x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Assembly Procedure Disconnect all electrical connectors. With the aid of an assistant, remove the console from the vehicle. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Front Floor Console Bolt to Floor Panel Tunnel Panel [8x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Floor Console Assembly

Procedure
