Rocker Panel Molding Replacement

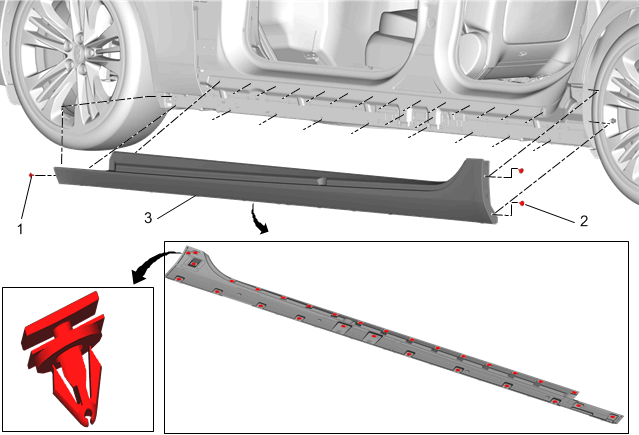

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the front and rear side doors.
1	Front Wheelhouse Liner Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Bolt [2x] Tighten 2.5 N.m (22 lb in)
3	Rocker Panel Molding Procedure Using the appropriate tool, release the retainers from the bottom edge and pull down the rocker panel molding from the body side outer panel. Using the appropriate tool, release the retainers from the top edge, pull out the rocker panel molding from the body side outer panel and remove from the vehicle.
