Theft Deterrent Alarm Replacement

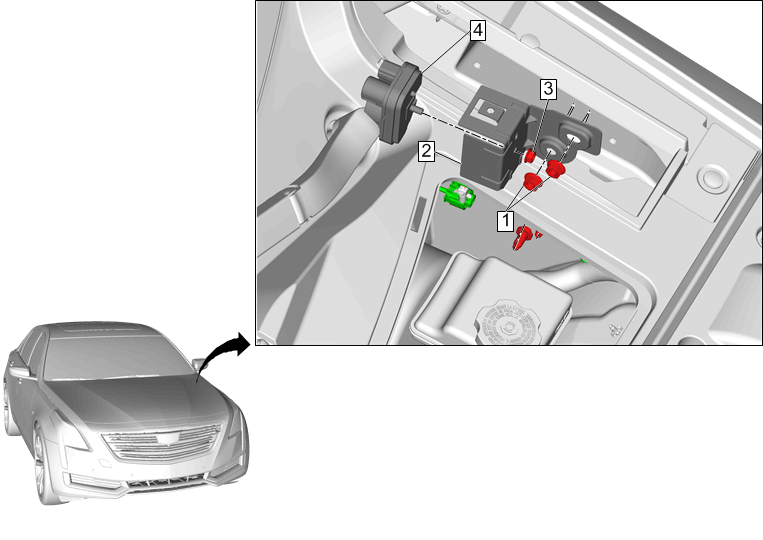

Fig 1: Theft Deterrent Alarm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Access Hole Cover Replacement
1	Theft Deterrent Alarm Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Theft Deterrent Alarm Bracket Procedure Disconnect the electrical connector. Remove the theft deterrent alarm and bracket.
3	Theft Deterrent Alarm Bracket Fastener Tighten 6 N.m (53 lb in)
4	Theft Deterrent Alarm Procedure Remove the theft deterrent alarm from the bracket.
