Dimmer Switch Replacement

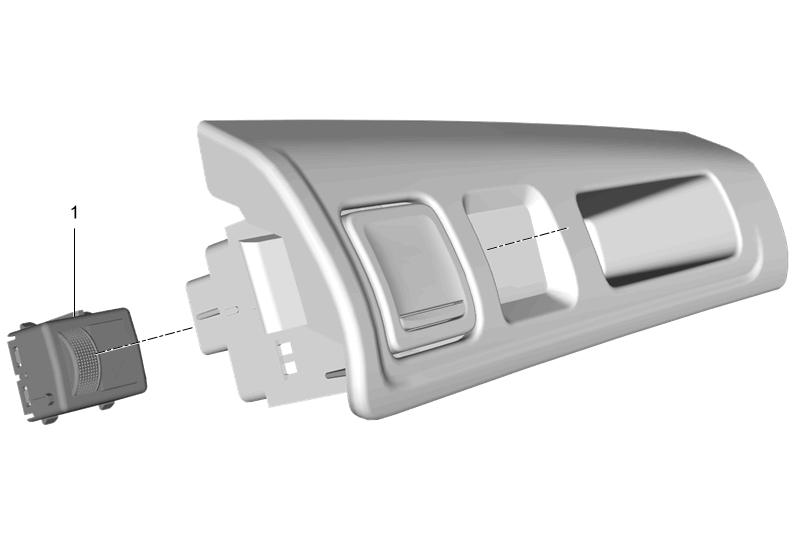

Fig 1: Interior Lamp Switch - Instrument Panel
GM4253779Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Accessory Bezel Replacement
1 Dimmer Switch
Procedure
Release the retaining tabs.
