Collision Avoidance - Long Range and Rear Short Range Radars (UGN/UVZ)

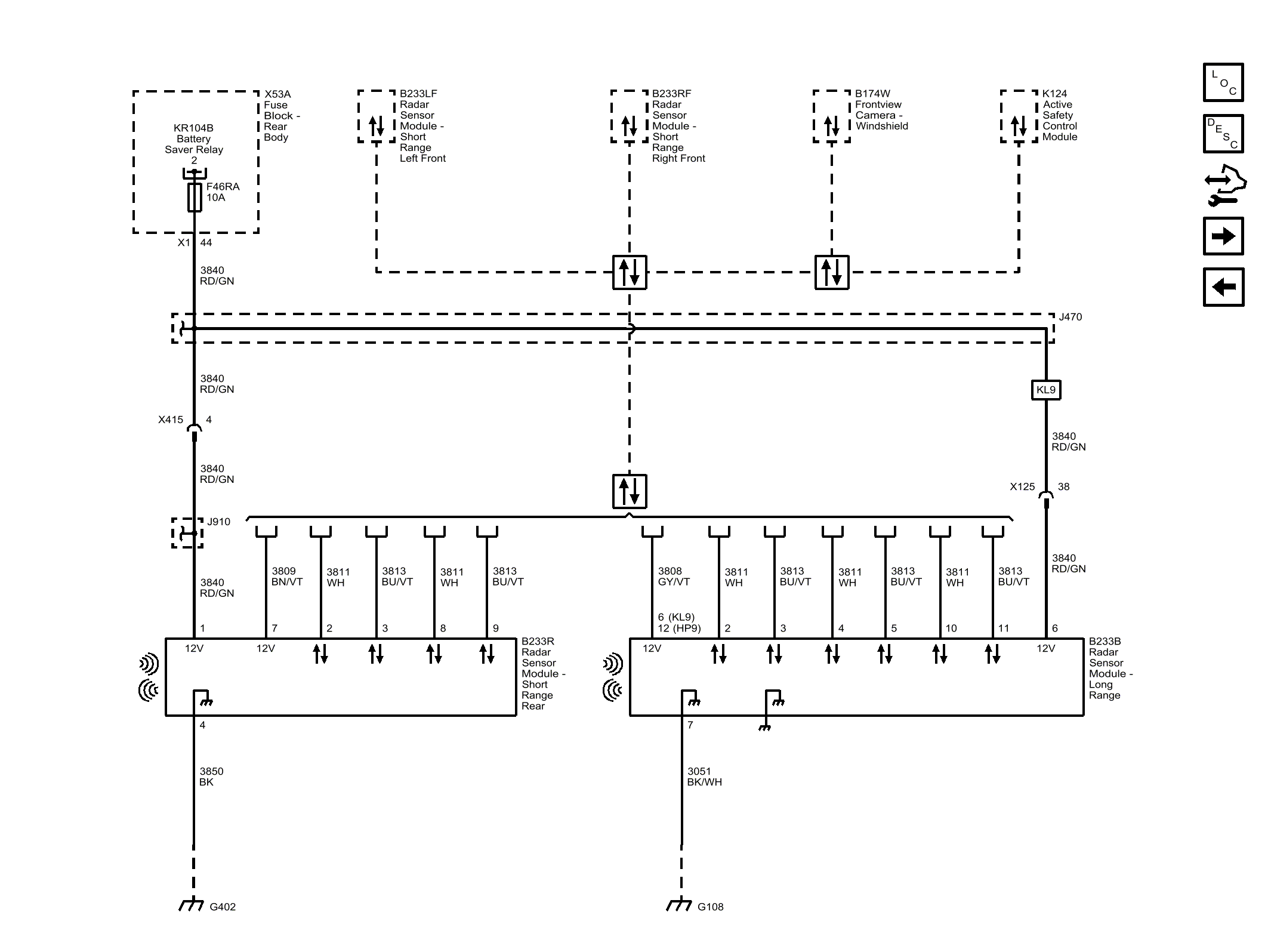

Fig 1: Collision Avoidance - Long Range and Rear Short Range Radars (UGN/UVZ)

GM4489905
