Rearview Driver Information Camera Replacement (With UVH)

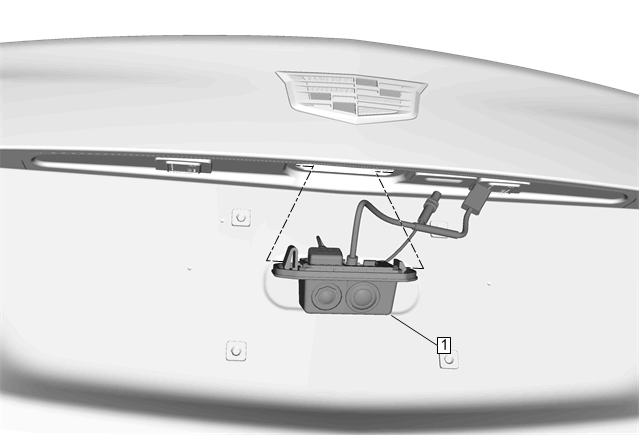

Fig 1: Rearview Driver Information Camera (With UVH)
GM4259070Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Lid Inner Panel Trim Replacement
1 Rearview Driver Information Camera

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Video Processing Control Module Calibration
