Night Vision Camera Cleaning Nozzle Replacement
Night Vision Camera Cleaning Nozzle Replacement

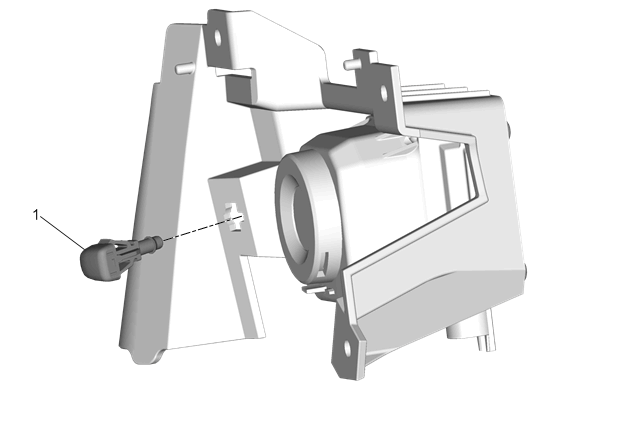

Fig 1: Night Vision Camera Cleaning Nozzle
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Night Vision Camera Bracket Replacement
Night Vision Camera Cleaning Hose Replacement
1
Night Vision Camera Cleaning Nozzle
Procedure
Release the retaining tabs.
