Transmission Control Module

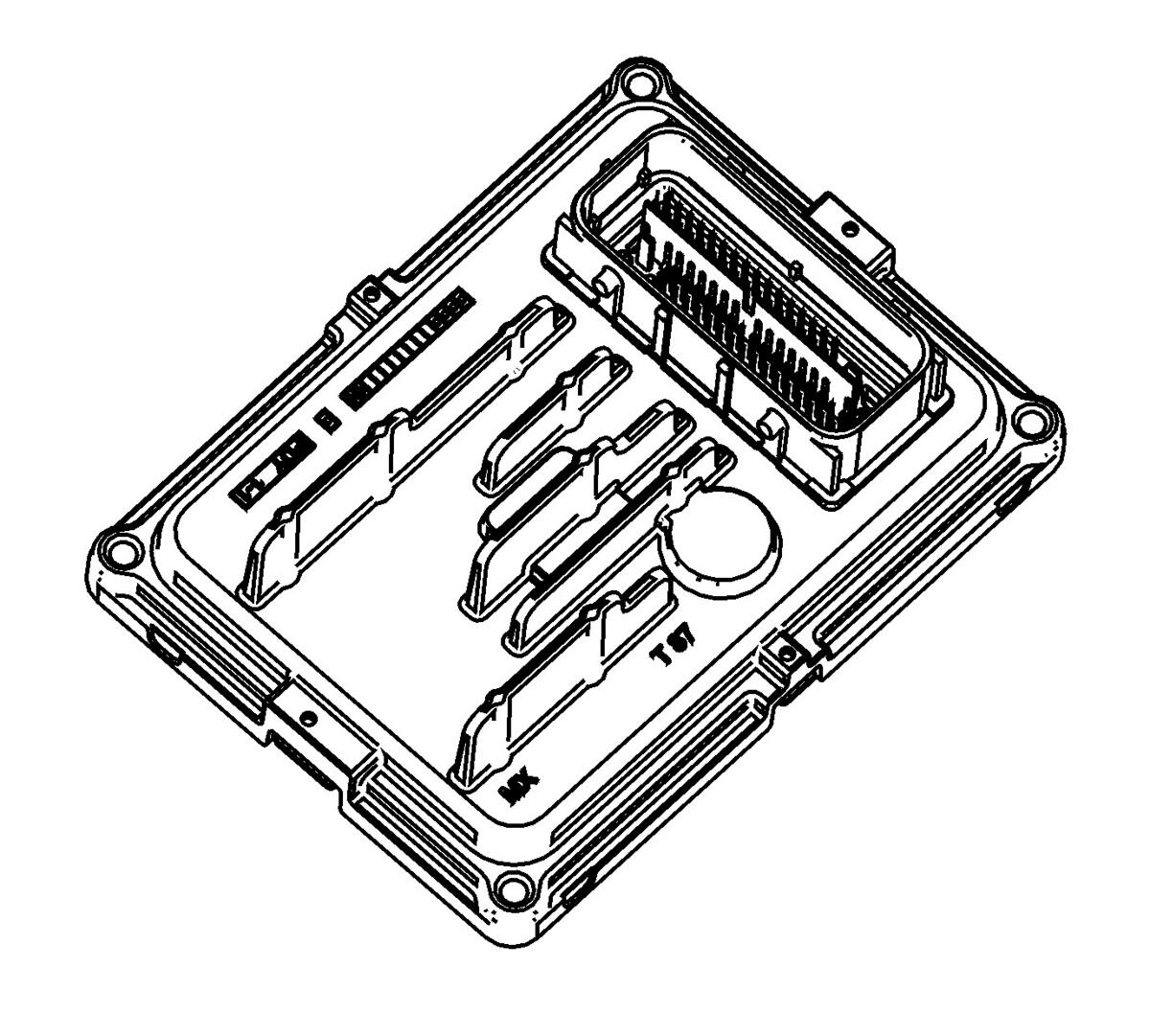

The Transmission Control Module (TCM) for this transmission is a standalone controller mounted to the vehicle. The TCM has one 66 way connector to interface with vehicle electrical system, transmission assembly and other vehicle control modules. The TCM sends and receives various input and output signals from a number of switches and sensors internal and external to the transmission. In addition, the TCM is part of a network of other control modules on the vehicle. The network of control modules will share information with each other, over a common serial data communications line. Based upon the calibrations and input information the TCM receives, it will always have final authority of when to allow an upshift or downshift whether in manual mode operation or in drive position for automatic shifting.
