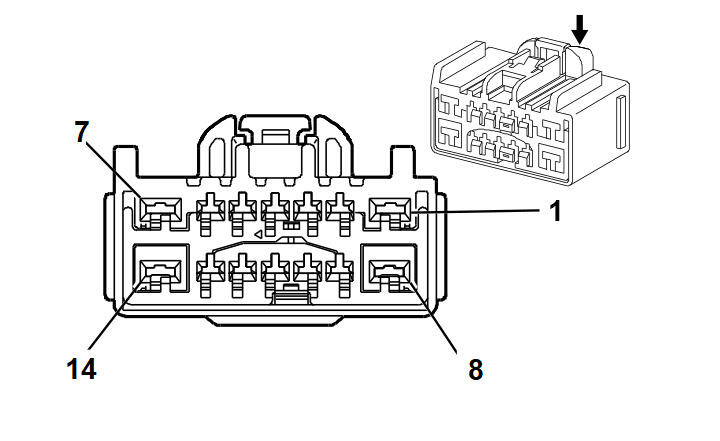

T1 Accessory DC/AC Power Inverter Module X2 (KI7)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15452737
- Service Connector: 19167675
- Description: 14-Way F 1.5, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578891 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13580025 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
5683 |
120 V AC Phase A |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 4 |
0.35 |
WH/GN |
4628 |
DC/AC Inverter Relay Control |
I |
- |
| 5 |
0.35 |
BU/WH |
6807 |
DC To AC Inverter Control |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
RD |
5684 |
120 V AC Phase B |
II |
- |
| 9 |
0.5 |
BARE |
514 |
Low Reference |
I |
- |
| 10 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 11 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
