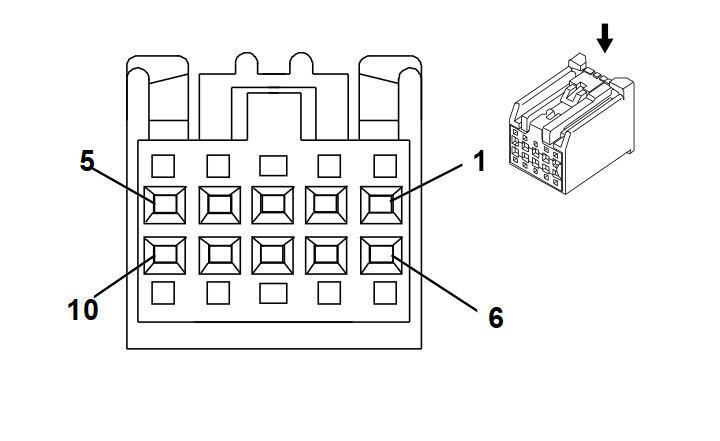

P17 Info Display Module X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13815336
- Service Connector: 13577390
- Description: 10-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BU |
3240 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY/GN |
1102 |
Low Speed GMLAN Serial Data #2 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
GN/BU |
7532 |
Local Interconnect Network Serial Data Bus 10 |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
GN/WH |
7527 |
Local Interconnect Network Serial Data Bus 5 |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.75 |
BK/WH |
1551 |
Signal Ground |
I |
- |
