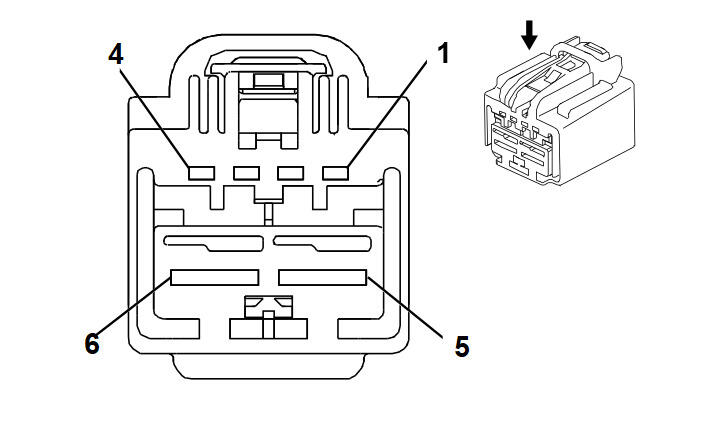

K40P Seat Memory Control Module - Passenger X2
|
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 15226104
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GN/YE |
4116 |
Local Interconnect Network Serial Data Bus 16 |
I |
AQ9 |
| 5 |
2.5 |
BK |
2250 |
Ground |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
