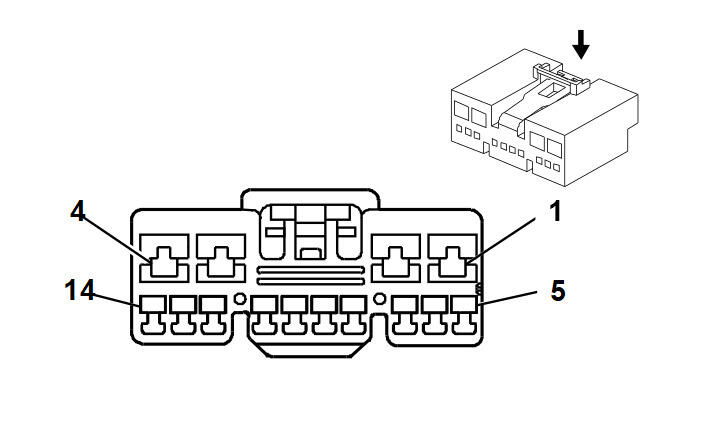

K39 Liftgate Control Module X3 (HP9+(TC2/TL9))
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15466088
- Service Connector: 19179972
- Description: 14-Way F 0.64, 2.8 YESC Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575847 |
J-35616-64B (LT BU) |
J-38125-553 |
7116-4720-02 |
Yazaki 14 |
H |
H |
| II |
13580025 |
J-35616-4A (PU) |
J-38125-11A |
7116-4112-02 |
Yazaki 9 |
C |
D |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN/WH |
5799 |
Lift Gate Open/Close Motor Close Control |
II |
- |
| 2 |
2.5 |
WH |
5798 |
Lift Gate Open/Close Motor Open Control |
II |
- |
| 3 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
BN/RD |
5803 |
Lift Gate Position Sensor 5V Reference |
I |
- |
| 9 |
0.35 |
BU/WH |
5805 |
Lift Gate Position Sensor Signal 1 |
I |
- |
| 10 |
0.35 |
BN/YE |
5806 |
Lift Gate Position Sensor Signal 2 |
I |
- |
| 11 |
0.35 |
BK/GN |
5804 |
Lift Gate Position Sensor Low Reference |
I |
- |
| 12 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
BARE |
3015 |
Lift Gate Open/Close Motor Low Reference |
I |
- |
