K32 Steering Wheel Heating Control Module X2 (UVD)
|
|

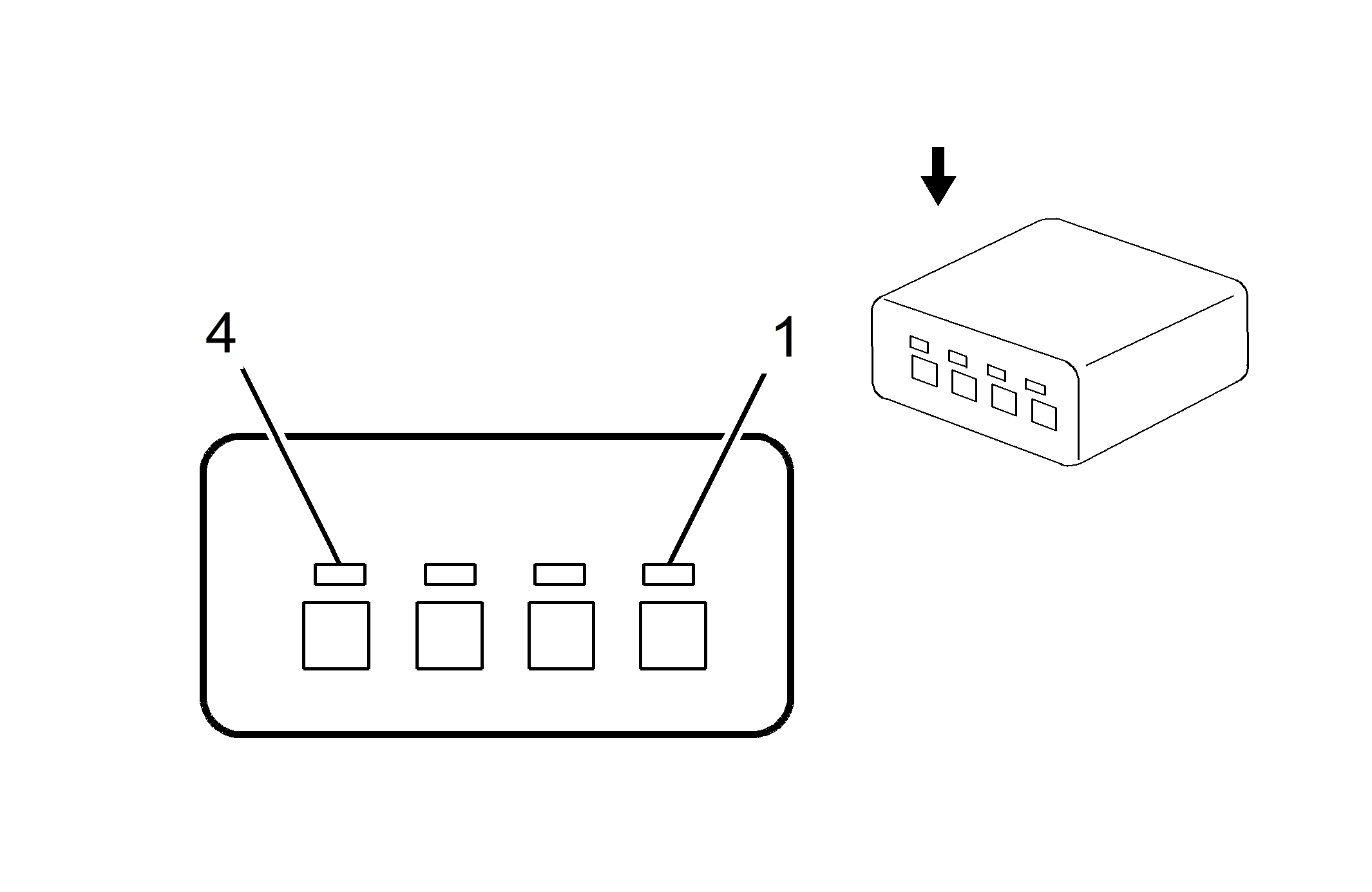

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 2 |
0.5 |
RD |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
| 3 |
0.35 |
BK/RD |
5885 |
Heated Steering Wheel Voltage Reference |
I |
- |
| 4 |
0.35 |
BK/RD |
1350 |
Ground |
I |
- |
