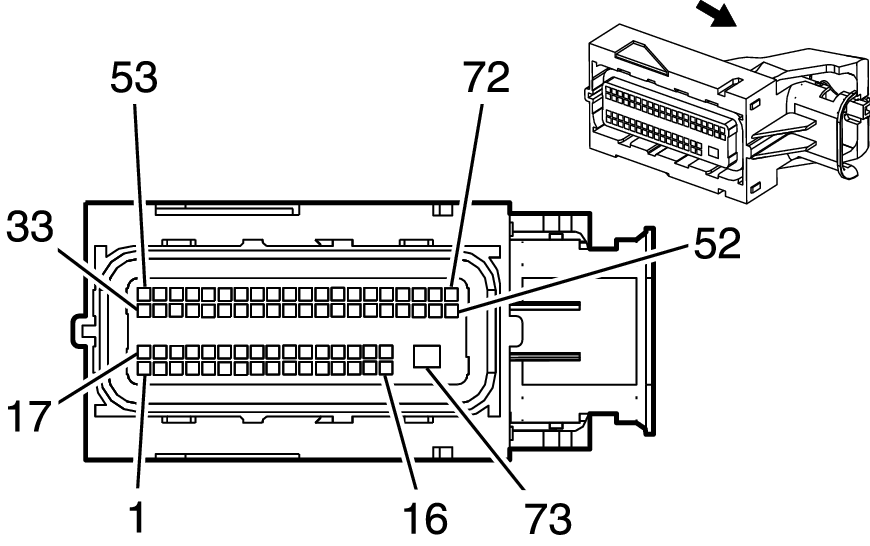

K20 Engine Control Module X3 (LGW)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 33168054
- Service Connector: 19333330
- Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with BU Terminal Position Assurance)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575812 |
J-35616-64B (LT BU) |
J-38125-213 |
33467-0003 |
Delphi 23 |
J |
J |
| II |
13579770 |
J-35616-35 (VT) |
J-38125-11A |
7116-4152-02 |
Yazaki 9 |
2 |
5 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN/YE |
3212 |
Heated Oxygen Sensor Heater Low Control Bank 2 Sensor 1 |
I |
- |
| 2 |
0.5 |
L-GN |
3060 |
Turbo Bypass Solenoid Control Bank 1 |
I |
- |
| 3 |
0.5 |
D-BU/WH |
3607 |
Supercharger Intercooler Pump Relay Control |
I |
- |
| 4 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.5 |
GY/WH |
3113 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 1 |
I |
- |
| 18 |
0.5 |
BN/YE |
258 |
Waste Gate Solenoid Control |
I |
- |
| 19 |
0.5 |
WH/GY |
3218 |
Boost Pressure Solenoid 2 Control |
I |
- |
| 20 - 29 |
- |
- |
- |
Not Occupied |
- |
- |
| 30 |
0.5 |
YE/BK |
7337 |
Mass Air Flow Sensor Signal 2 |
I |
- |
| 31 - 32 |
- |
- |
- |
Not Occupied |
- |
- |
| 33 |
0.5 |
WH/GY |
4578 |
Surge Accumulator Solenoid Low Side Control |
I |
- |
| 34 - 36 |
- |
- |
- |
Not Occupied |
- |
- |
| 37 |
0.5 |
D-BU/RD |
3056 |
Turbo Intake Pressure Sensor High Reference Bank 2 |
I |
- |
| 38 |
0.5 |
GY/RD |
3053 |
Turbo Intake Pressure Sensor High Reference Bank 1 |
I |
- |
| 39 - 41 |
- |
- |
- |
Not Occupied |
- |
- |
| 42 |
0.5 |
WH/D-BU |
7329 |
Pre-Throttle Air Temp and Press (TMAP) Temperature Signal |
I |
- |
| 43 |
0.5 |
BK/VT |
2755 |
Oil Pressure Sensor Low Reference |
I |
- |
| 44 - 56 |
- |
- |
- |
Not Occupied |
- |
- |
| 57 |
0.5 |
L-GN |
3057 |
Turbo Intake Pressure Sensor Signal Bank 2 |
I |
- |
| 58 |
0.5 |
YE |
3054 |
Turbo Intake Pressure Sensor Signal Bank 1 |
I |
- |
| 59 - 67 |
- |
- |
- |
Not Occupied |
- |
- |
| 68 |
0.5 |
VT |
3059 |
Turbo Waste Gate Solenoid Control Bank 2 |
I |
- |
| 69 |
0.5 |
YE |
3058 |
Turbo Waste Gate Solenoid Control Bank 1 |
I |
- |
| 70 - 72 |
- |
- |
- |
Not Occupied |
- |
- |
| 73 |
2 |
VT/D-BU |
5290 |
Powertrain Main Relay Fused Supply 1 |
II |
- |
