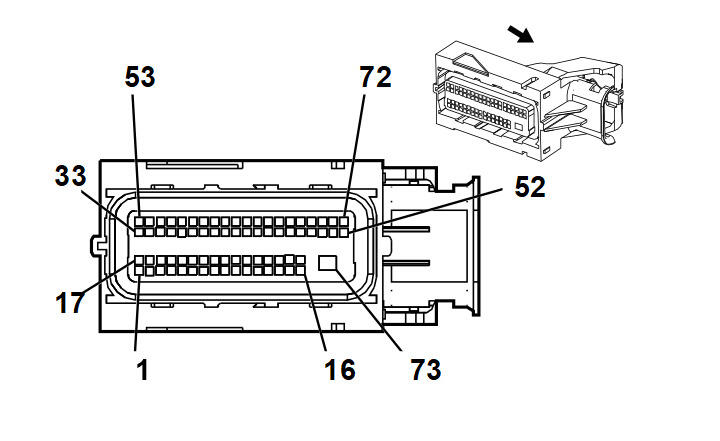

K20 Engine Control Module X2 (LGW)

Connector Part Information

Harness Type: Engine
OEM Connector: 33191430
Service Connector: 13574947
Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with BK Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13505803	J-35616-35 (VT)	J-38125-12A	1326030-8	Lear 17	A	4
II	13575812	J-35616-64B (LT BU)	J-38125-213	33467-0003	Delphi 23	J	J

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	GY/WH	3122	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 2	II	-
2	0.5	WH/BN	3223	Heated Oxygen Sensor Heater Low Control Bank 2 Sensor 2	II	-
3 - 6	-	-	-	Not Occupied	-	-
7	0.5	L-GN/VT	4621	Local Interconnect Network Serial Data Bus 21	II	-
8	-	-	-	Not Occupied	-	-
9	0.5	BN/L-GN	1174	Oil Level Switch Signal	II	-
10	-	-	-	Not Occupied	-	-
11	0.5	YE/BN	331	Oil Pressure Sensor Signal	II	-
12	0.5	BK/WH	2051	Signal Ground	II	-
13	0.5	BN/VT	5278	Heated Oxygen Sensor Input Pump Current Bank 1 Sensor 1	II	-
14	0.5	WH	5279	Heated Oxygen Sensor Pump Current Bank 1 Sensor 1	II	-
15	0.5	VT/GY	3110	Heated Oxygen Sensor High Signal Bank 1 Sensor 1	II	-
16	0.5	WH/BK	3111	Heated Oxygen Sensor Low Signal Bank 1 Sensor 1	II	-
17 - 20	-	-	-	Not Occupied	-	-
21	0.5	D-BU/WH	1937	Secondary Fuel Level Sensor Signal	II	-
22	0.5	D-BU/VT	1589	Primary Fuel Level Sensor Signal	II	-
23 - 26	-	-	-	Not Occupied	-	-
27	0.5	WH/RD	2705	Oil Pressure Sensor 5V Reference	II	-
28	0.5	VT/D-BU	5293	Powertrain Main Relay Fused Supply 4	II	-
29	0.5	YE	5280	Heated Oxygen Sensor Input Pump Current Bank 2 Sensor 1	II	-
30	0.5	VT/GY	5281	Heated Oxygen Sensor Pump Current Bank 2 Sensor 1	II	-
31	0.5	VT/WH	3210	Heated Oxygen Sensor High Signal Bank 2 Sensor 1	II	-
32	0.5	YE/WH	3211	Heated Oxygen Sensor Low Signal Bank 2 Sensor 1	II	-
33 - 36	-	-	-	Not Occupied	-	-
37	0.5	WH/YE	3121	Heated Oxygen Sensor Low Signal Bank 1 Sensor 2	II	-
38	0.5	YE/D-BU	3221	Heated Oxygen Sensor Low Signal Bank 2 Sensor 2	II	-
39	0.5	BK/YE	1716	Knock Sensor Low Reference 1	II	-
40	0.5	BK/GY	2303	Knock Sensor Low Reference 2	II	-
41	-	-	-	Not Occupied	-	-
42	0.5	VT/D-BU	7330	Pre Throttle Air Temp and Press (TMAP) Air Pressure Signal	II	-
43	0.5	GY/RD	7331	Pre Throttle Air Temp and Press (TMAP) 5V Reference	II	-
44 - 45	-	-	-	Not Occupied	-	-
46	0.5	YE/RD	2709	Fuel Tank Pressure Sensor 5V Reference	II	-
47	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5V Reference	II	-
48	0.5	BK/L-GN	469	Manifold Absolute Pressure Sensor Low Reference	II	-
49 - 51	-	-	-	Not Occupied	-	-
52	0.5	BN/WH	582	Throttle Actuator Control Close	II	-
53 - 56	-	-	-	Not Occupied	-	-
57	0.5	VT/D-BU	3120	Heated Oxygen Sensor High Signal Bank 1 Sensor 2	II	-
58	0.5	VT/L-GN	3220	Heated Oxygen Sensor High Signal Bank 2 Sensor 2	II	-
59	0.5	VT/GY	496	Knock Sensor Signal 1	II	-
60	0.5	WH/GY	1876	Knock Sensor Signal 2	II	-
61 - 62	-	-	-	Not Occupied	-	-
63	0.5	BK/VT	7332	Pre Throttle Air Temp and Press (TMAP) Low Reference	II	-
64 - 66	-	-	-	Not Occupied	-	-
67	0.5	L-GN/WH	432	Manifold Absolute Pressure Sensor Signal	II	-
68 - 69	-	-	-	Not Occupied	-	-
70	0.5	WH/D-BU	6289	Induction Air Temperature Sensor Signal	I	-
71	-	-	-	Not Occupied	-	-
72	0.5	YE	581	Throttle Actuator Control Open	II	-
73	2	BK/WH	451	Signal Ground	I	-
