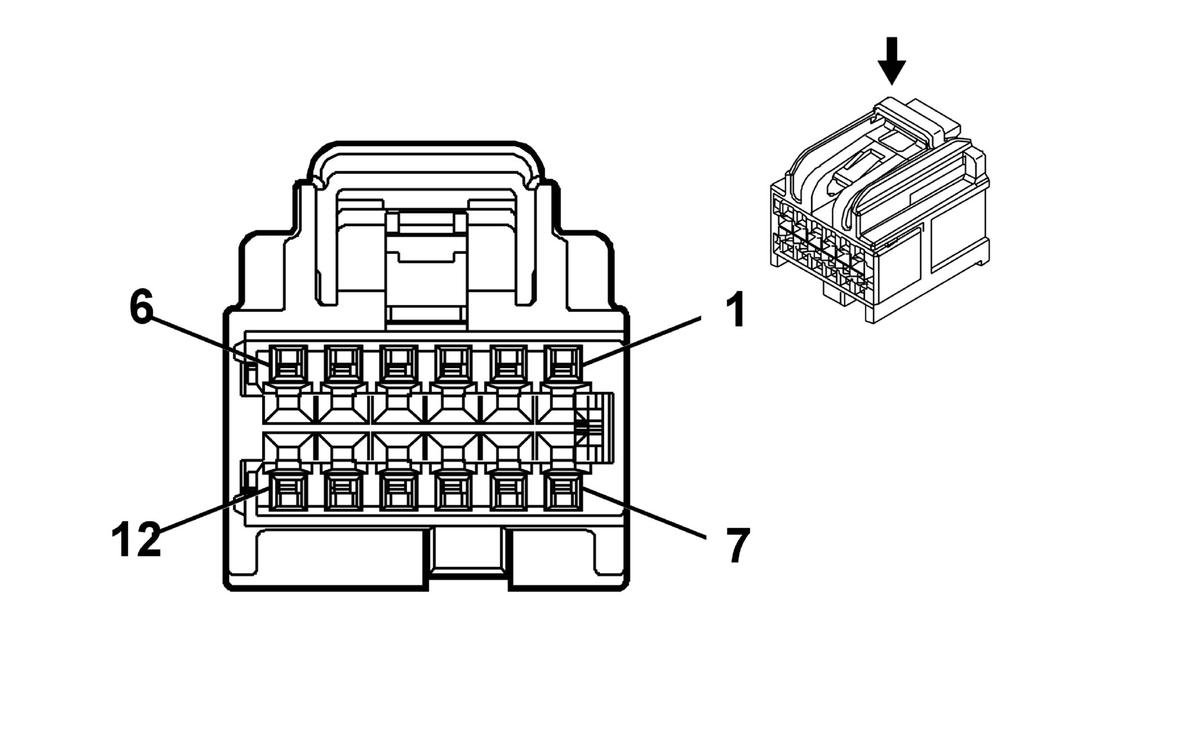

K157 Video Processing Control Module X2 (UVH)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13782625
- Service Connector: 19301730
- Description: 12-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13587581 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/L-GN |
7740 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
L-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
I |
- |
| 7 |
0.35 |
BK |
3850 |
Ground |
I |
- |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
BARE |
6974 |
Camera Low Reference |
I |
- |
| 12 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
I |
- |
