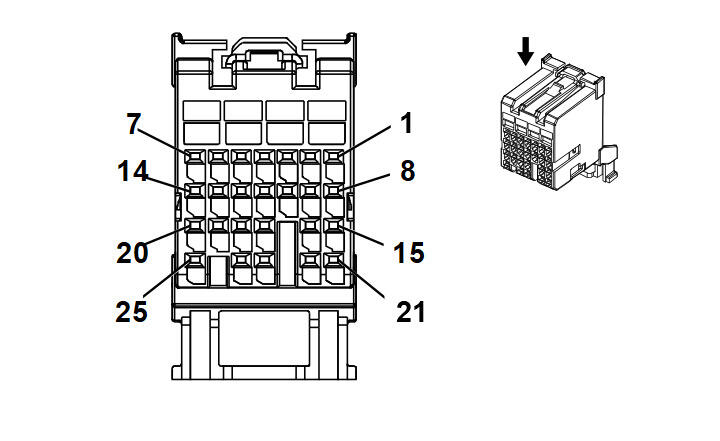

K9 Body Control Module X3

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	GN/GY	3277	Vehicle Anti-Theft System Immobilizer Low Reference	I	-
2	0.35	GN/WH	7533	Local Interconnect Network Serial Data Bus 11	I	-
3	0.35	GY/BK	3276	Vehicle Anti-Theft System Immobilizer Control	I	-
4	0.35	WH/RD	1444	12V Reference	I	-
5	0.35	VT/YE	4	Accessory Ignition Voltage	I	-
6	0.35	VT/BK	3	Run/Crank Ignition 1 Voltage	I	-
7	0.35	GY/GN	5996	Driver Outside Rear View Mirror Puddle Lamp Control	I	-
8	0.35	GY/GN	5737	Adaptive Cruise Control Gap Up/Down Switch Signal	I	-
9	0.35	BN/GN	1884	Cruise Control Set/Coast/Resume/Accelerate Switch Signal	I	-
10	0.35	BK/GY	6009	Windshield Wiper Switch Low Reference	I	-
11	0.35	WH	524	Headlamp Dimmer Switch High Beam Signal	I	-
12	0.35	BU/WH	1414	Left Front Turn Signal Switch Signal	I	-
13	0.35	YE/BU	1714	Windshield Wiper Switch Low Signal	I	-
14	0.13	BU	1111	Auto Stop Start Switch Signal	I	-
15 - 16	-	-	-	Not Occupied	-	-
17	0.35	YE/BN	307	Headlamp Switch Flash To Pass Signal	I	-
18	0.35	GN/WH	3287	Horn Switch Signal	I	-
19	0.35	GN/WH	4115	Local Interconnect Network Serial Data Bus 15	I	KA6
20	0.35	GY	1715	Windshield Wiper Switch High Signal	I	-
21	0.35	VT/YE	5526	Tap Up/Tap Down Switch Signal	I	-
22	-	-	-	Not Occupied	-	-
23	0.35	GN	4512	Wireless Charging System Charge Indicator Control	I	-
24	0.35	GN/VT	1415	Right Front Turn Signal Switch Signal	I	-
25	0.35	WH/BK	94	Windshield Washer Switch Signal	I	-
