Installation Procedure

  1. Generator Control Module Coolant Radiator Bracket (1)» Install

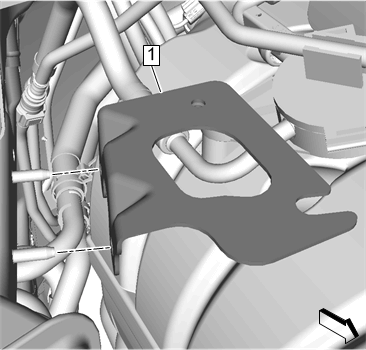

    Fig 1: Generator Control Module Coolant Radiator Bracket
    GM4485754Courtesy of GENERAL MOTORS COMPANY
  2. Generator Control Module Coolant Radiator Bracket Nut (1) @ Generator Control Module Coolant Radiator Bracket» Install and tighten [2x] 9 N.m (80 lb in)

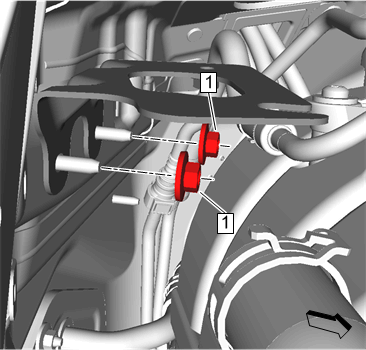

    Fig 2: Generator Control Module Coolant Radiator Bracket Nut
    GM4485753Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Generator Control Module Coolant/Air Separator (1)» Install - Generator Control Module Coolant/Air Separator Replacement

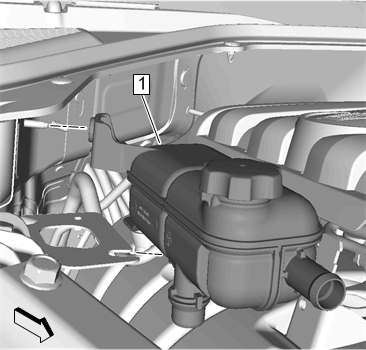

    Fig 3: Generator Control Module Coolant/Air Separator
    GM4485384Courtesy of GENERAL MOTORS COMPANY
  4. Fill the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
  5. Enable the high voltage system. Refer to High Voltage Enabling
  6. Start the engine and check for coolant leaks.
