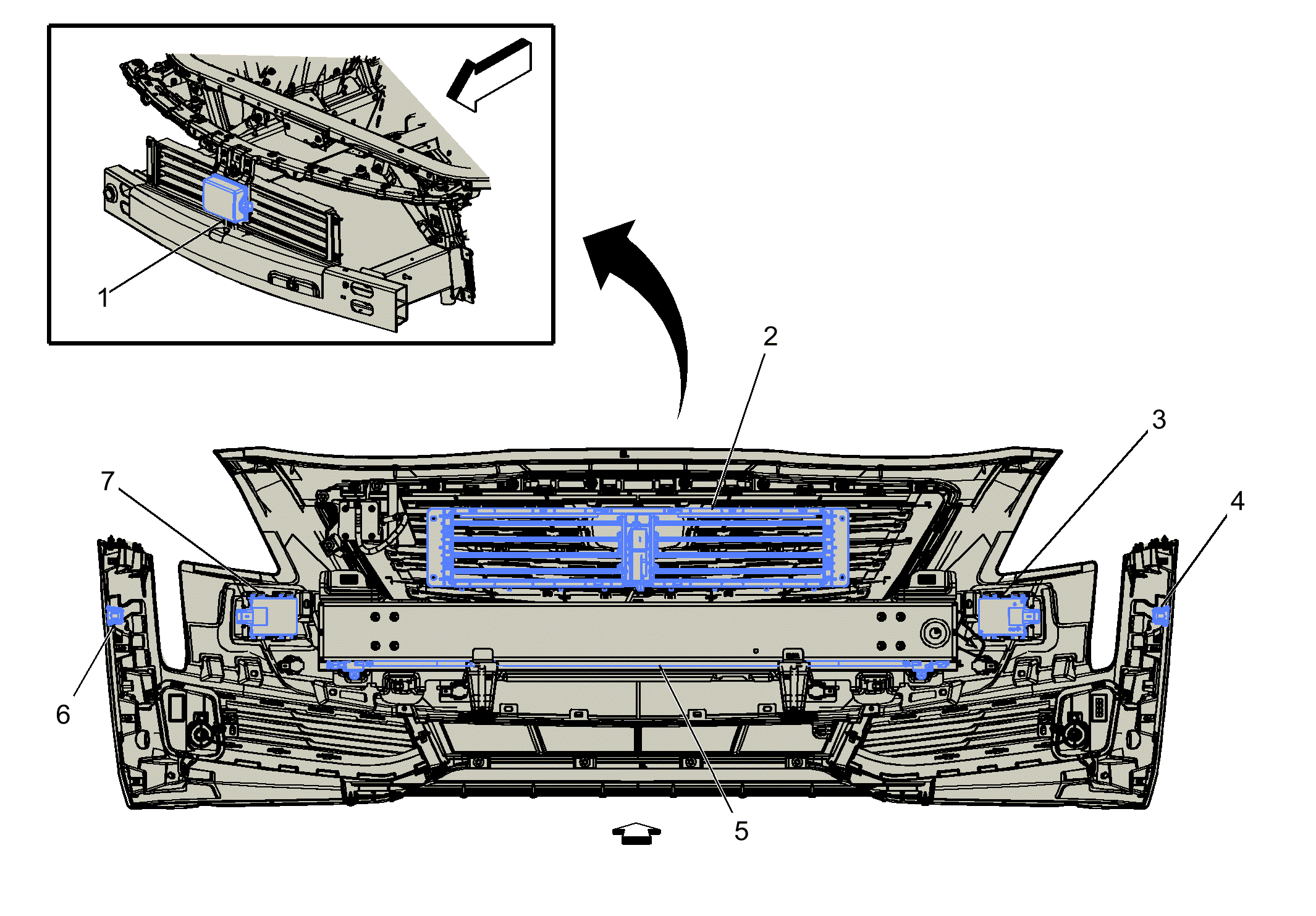

Front of Vehicle Components - Behind Front Fascia
Front of Vehicle Components - Behind Front Fascia
| Items |
|---|
| 1. B233B Radar Sensor Module - Long Range (UGN/UVZ) B233B Radar Sensor Module - Long Range (UGN+HP9)B233B Radar Sensor Module - Long Range (UGN+KL9) |
| 2. M96 Active Grille Air Shutter Actuator M96 Active Grille Air Shutter Actuator |
| 3. B233RF Radar Sensor Module - Short Range Right Front (UGN/UVZ) B233RF Radar Sensor Module - Short Range Right Front (UGN) |
| 4. B166RF Advanced Parking Assist Side Object Sensor - Right Front (UFQ) B166RF Advanced Parking Assist Side Object Sensor - Right Front (UKG) |
| 5. B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T)B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T) |
| 6. B166LF Advanced Parking Assist Side Object Sensor - Left Front (UFQ) B166LF Advanced Parking Assist Side Object Sensor - Left Front (UKG) |
| 7. B233LF Radar Sensor Module - Short Range Left Front (UGN/UVZ) B233LF Radar Sensor Module - Short Range Left Front (UGN) |
