Engine Compartment Brake Components (HP9)

Engine Compartment Brake Components (HP9)

Items
1. K177 Brake Booster Control Module (HP9) K177 Brake Booster Control Module (HP9)
2. B201 Brake Control Brake Pedal Position Sensor (HP9) B201 Brake Control Brake Pedal Position Sensor (HP9)

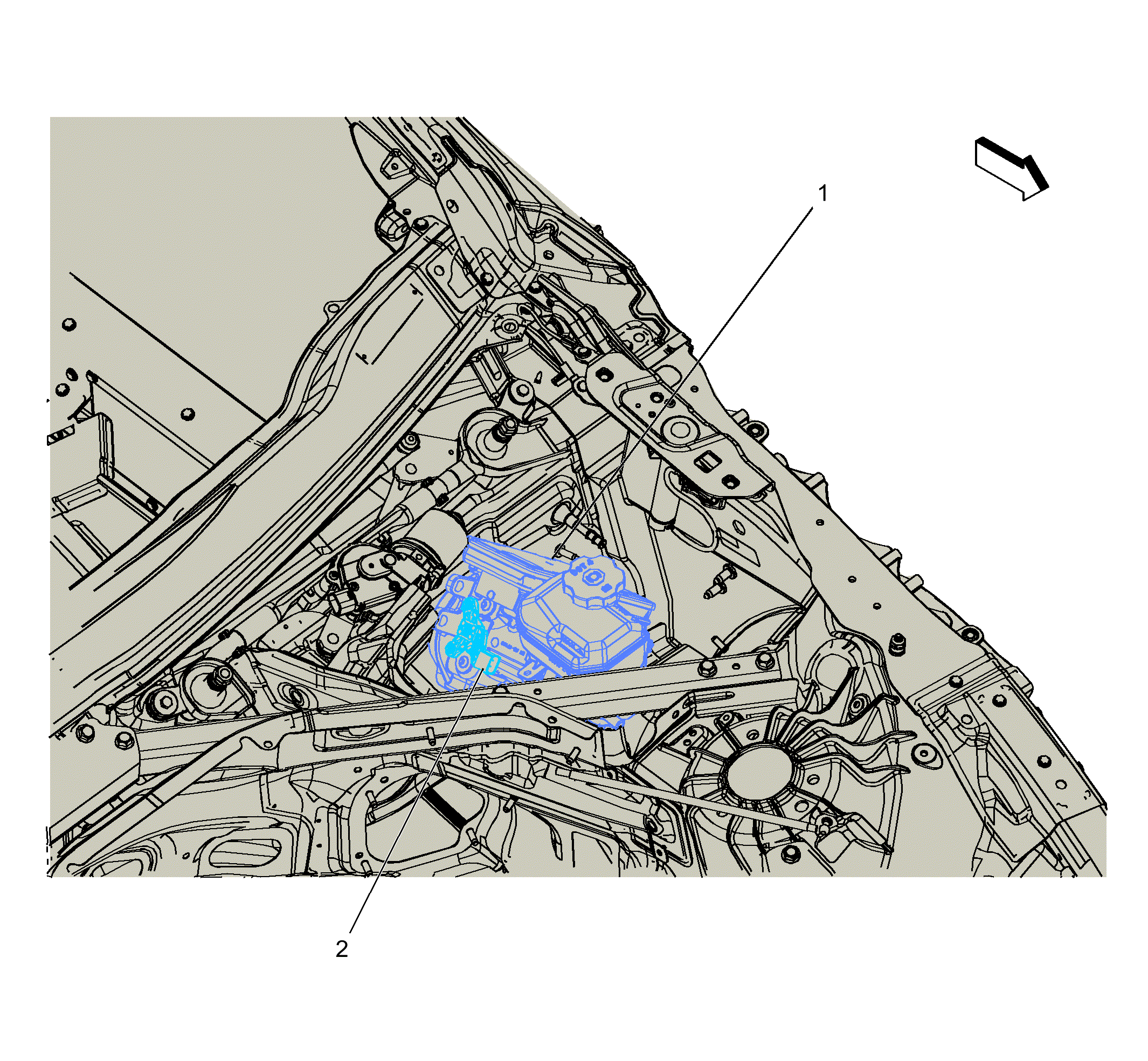

Fig 1: Engine Compartment Brake Components (HP9)
GM4316020Courtesy of GENERAL MOTORS COMPANY
