Hybrid Control Electronic Component Views

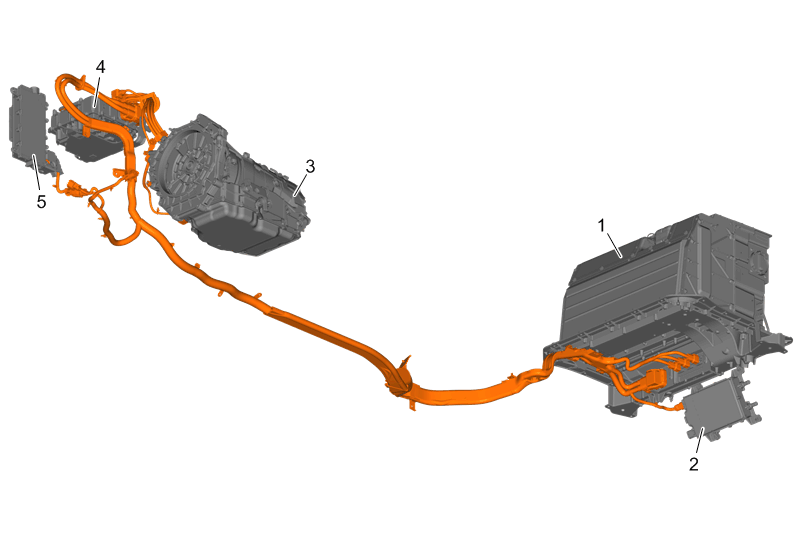

Fig 1: Hybrid Control Electronic Components
GM4544758Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 High Voltage Battery
2 T18 Battery Charger
3 T12 Automatic Transmission Assembly
4 T6 Power Inverter Module
5 K1 14V Power Module
