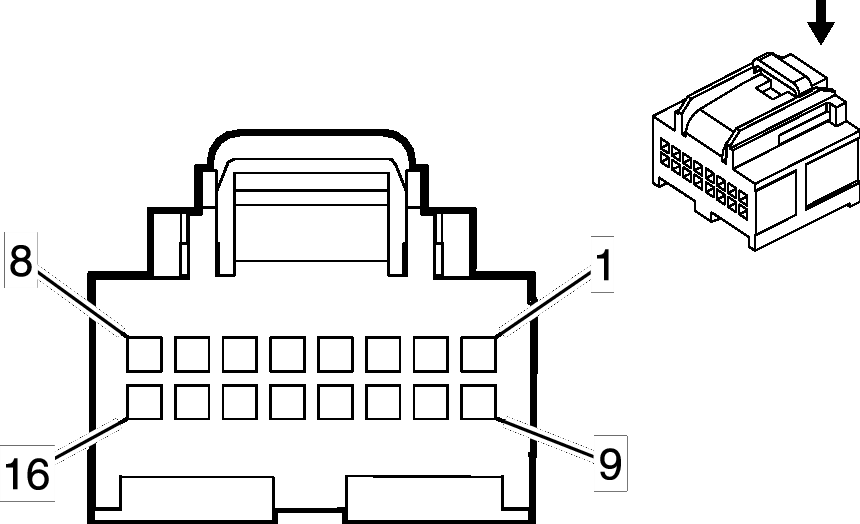

K56 Serial Data Gateway Module X2

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13587581	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-UKL
2	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-UKL
3 - 4	-	-	-	Not Occupied	-	-
5	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-UKL
6	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-UKL
7	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
8	0.35	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
9	-	-	-	Not Occupied	-	-
10	0.35	GY/GN	1102	Low Speed GMLAN Serial Data #2	I	-
11	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	HP9
12	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	HP9
13	0.35	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	HP9
14	0.35	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	HP9
15	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
16	0.35	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
