K171 Hands-Free Liftgate Sensor Control Module X3 (TC2)
|
|

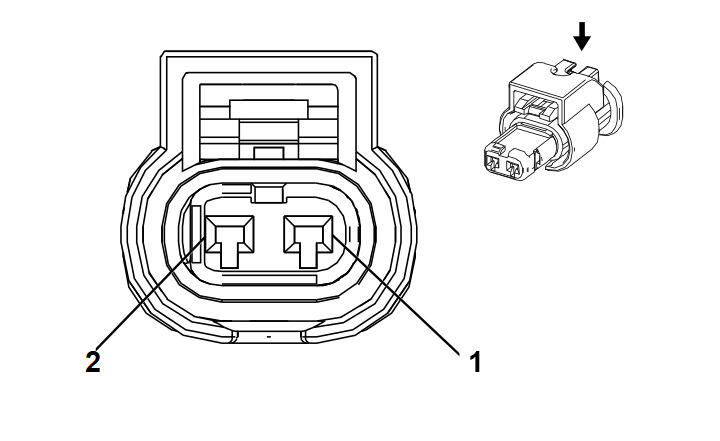

Connector Part Information
- Harness Type: Lower Hands-Free Liftgate Sensor
- OEM Connector: 13586144
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/YE |
3566 |
Passive Entry Right Rear Antenna Signal Hi |
I |
- |
| 2 |
0.5 |
BU/BK |
3567 |
Passive Entry Right Rear Antenna Signal Lo |
I |
- |
