Headlamp Washer Block Diagram

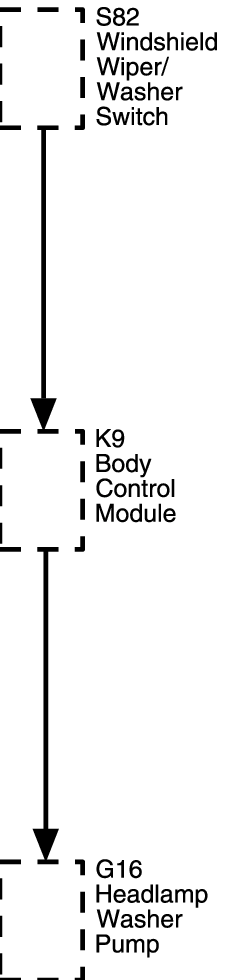

Fig 1: Headlamp Washer System Diagram
GM3937266Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
S82 S82 Windshield Wiper/Washer Switch
K9 K9 Body Control Module
G16 G16 Headlamp Washer Pump
