Digital Radio Transceiver Module Antenna Replacement

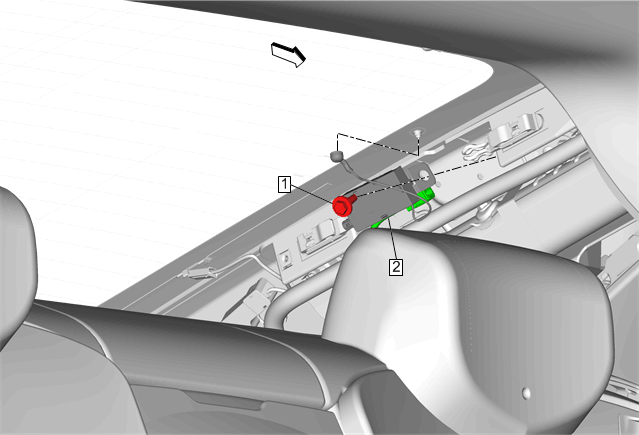

Fig 1: Digital Radio Transceiver Module Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Body Side Rear Window Garnish Molding Replacement
1	Radio Antenna Module Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Antenna Amplifier Procedure Disconnect the electrical connector. Unsnap the wire from the glass.

Callout

Component Name

Radio Antenna Module Bolt

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Radio Antenna Amplifier

Procedure
