Communication Interface Module Battery Replacement

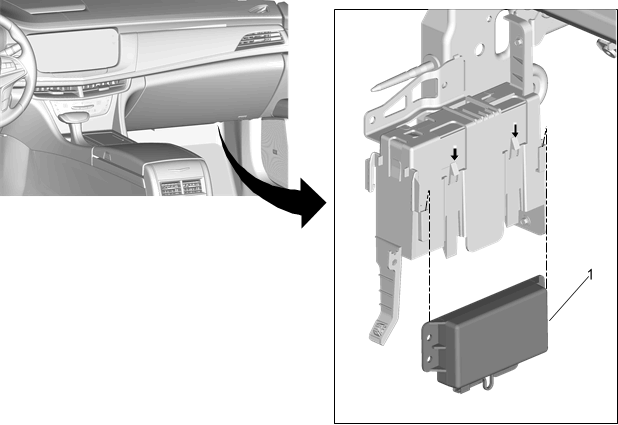

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Communication Interface Module Battery

Procedure
