Media Disc Player Power, Ground and Serial Data (WCN)

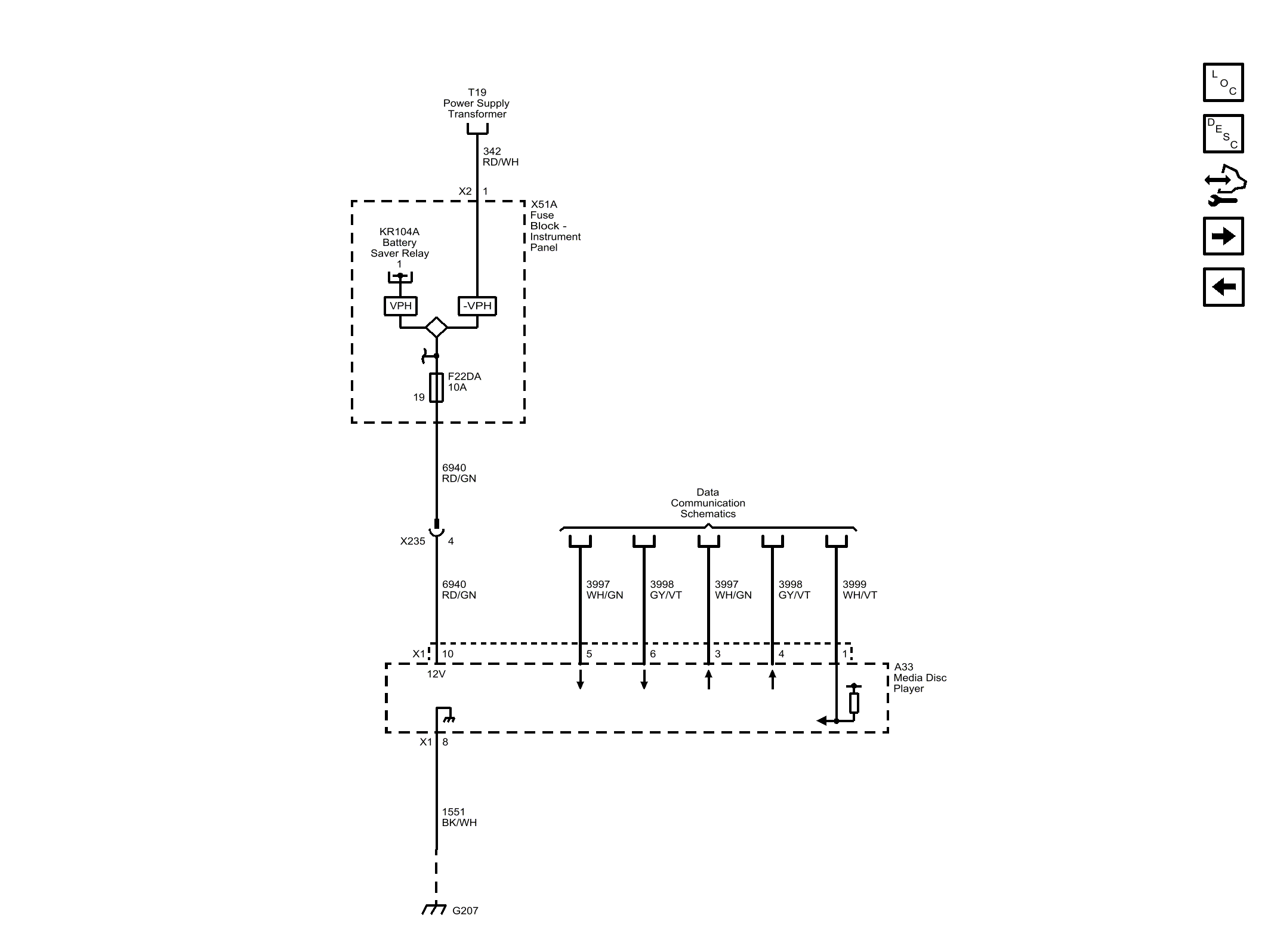

Fig 1: Media Disc Player Power, Ground and Serial Data (WCN)

GM4489713

Courtesy of GENERAL MOTORS COMPANY
