Controls, Audio Signals, Microphone and Module Battery (UE1)

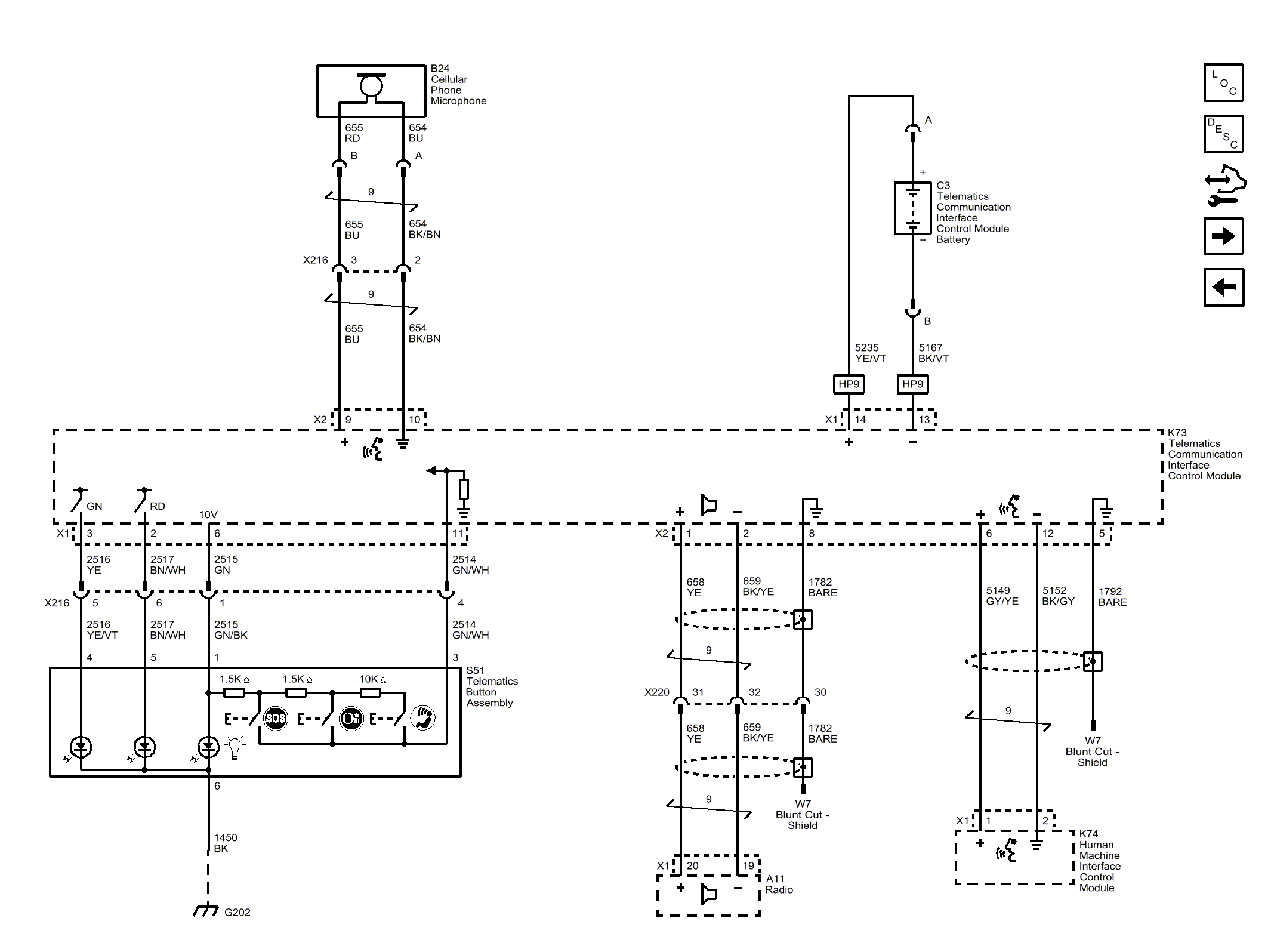

Fig 1: Controls, Audio Signals, Microphone and Module Battery (UE1)

GM4489740

Courtesy of GENERAL MOTORS COMPANY
