Navigation Signal Splitter Replacement

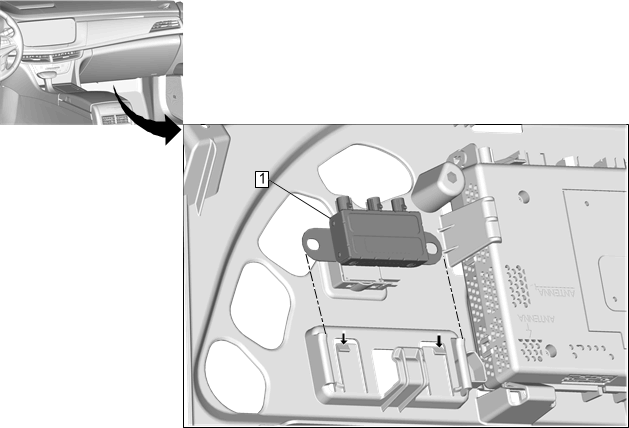

Fig 1: Navigation Signal Splitter
GM4243442Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1 Navigation Signal Splitter
Procedure
Release the retaining tabs.
