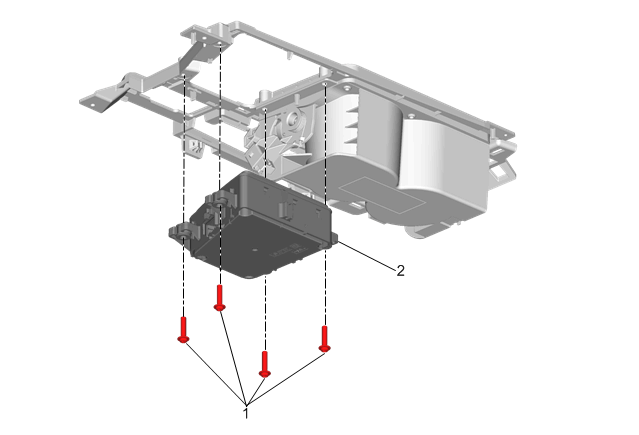

Infotainment Control Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Applique Replacement |
|
| 1 | Front Floor Console Bolt [4x]
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Infotainment Control Switch |
