Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

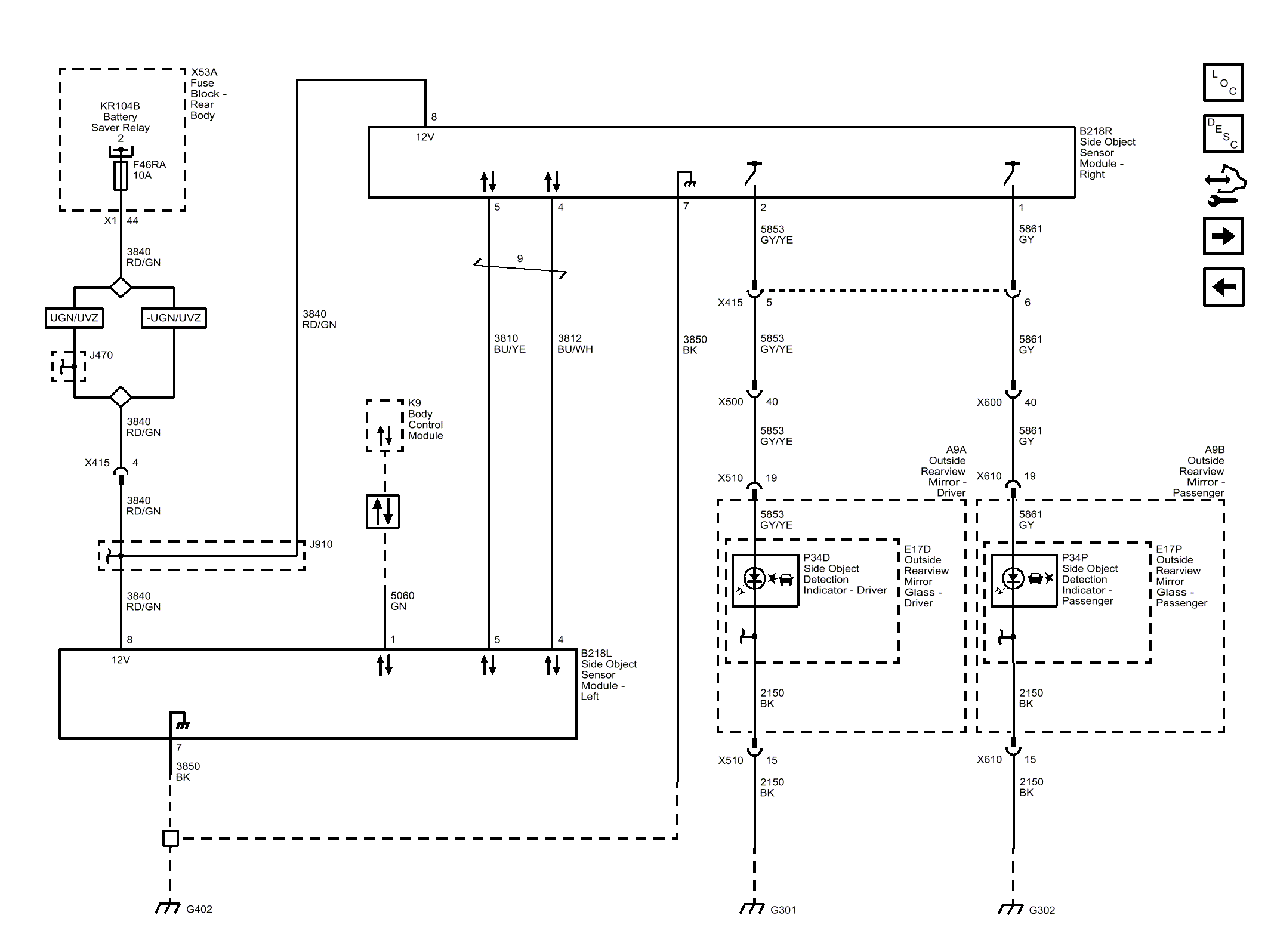

Fig 1: Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

GM4489899

Courtesy of GENERAL MOTORS COMPANY
