Park Assist - Module Power, Ground and Serial Data

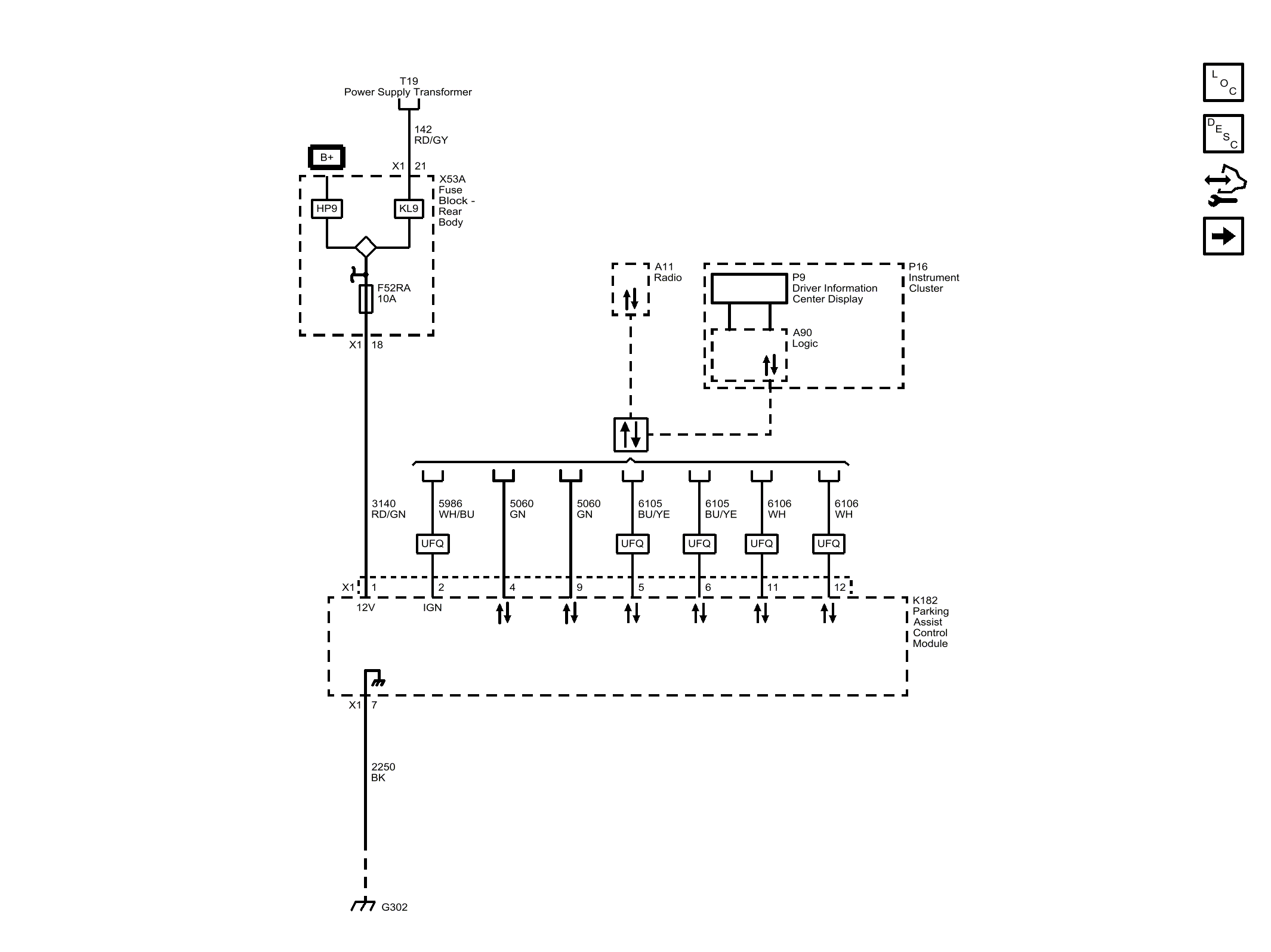

Fig 1: Park Assist - Module Power, Ground and Serial Data

GM4489893

Courtesy of GENERAL MOTORS COMPANY
