Parking Assist Alarm Sensor Ring Replacement (Front)

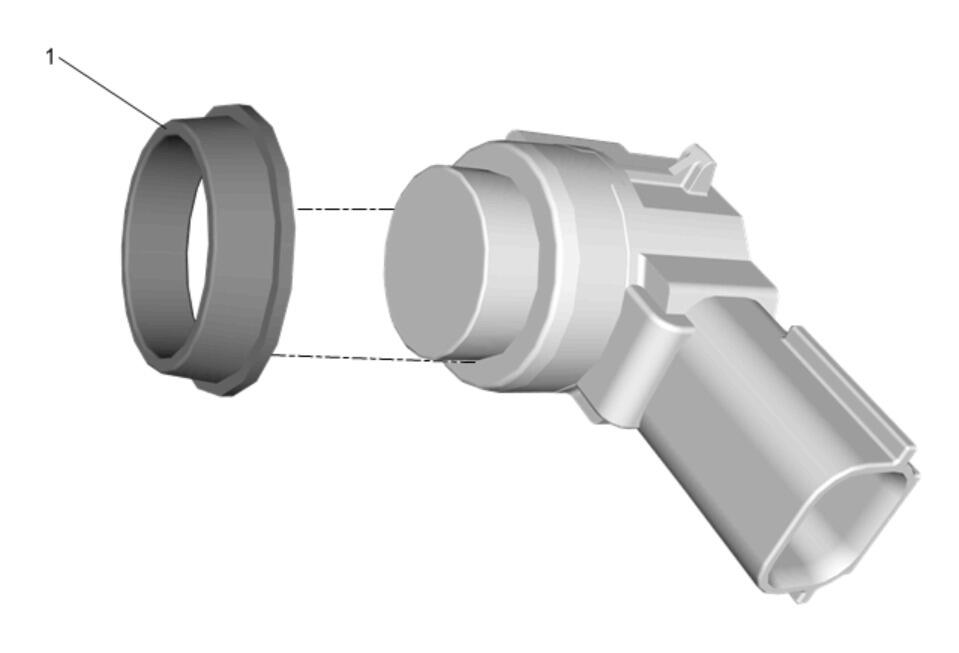

Fig 1: Parking Assist Alarm Sensor Ring (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front parking assist alarm sensor, if equipped. - Front Parking Assist Alarm Sensor Replacement Remove the advanced parking assist alarm sensor replacement, if equipped. - Advanced Parking Assist Alarm Sensor Replacement
1	Parking Assist Alarm Sensor Ring Procedure Pull the parking assist alarm sensor ring from the sensor.

Callout

Component Name

Preliminary Procedure

Remove the front parking assist alarm sensor, if equipped. - Front Parking Assist Alarm Sensor Replacement
Remove the advanced parking assist alarm sensor replacement, if equipped. - Advanced Parking Assist Alarm Sensor Replacement

Parking Assist Alarm Sensor Ring
Procedure
Pull the parking assist alarm sensor ring from the sensor.
