Parking Assist Alarm Disable Switch Replacement

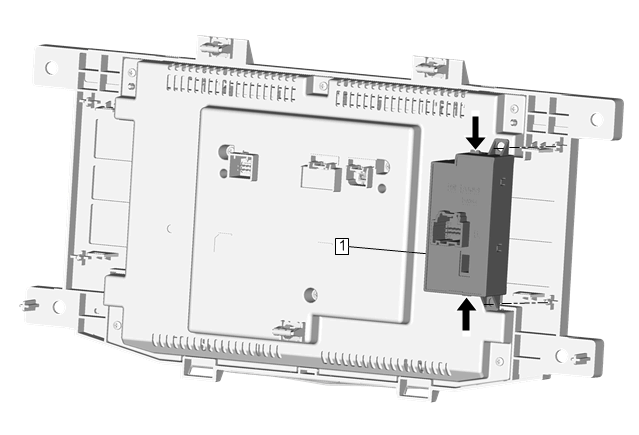

Fig 1: Parking Assist Alarm Disable Switch
GM4257258Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Control Assembly Replacement
1 Parking Assist Alarm Disable Switch
Procedure
Release the retaining tabs.
