Pedestrian Impact Detection System (B3T)

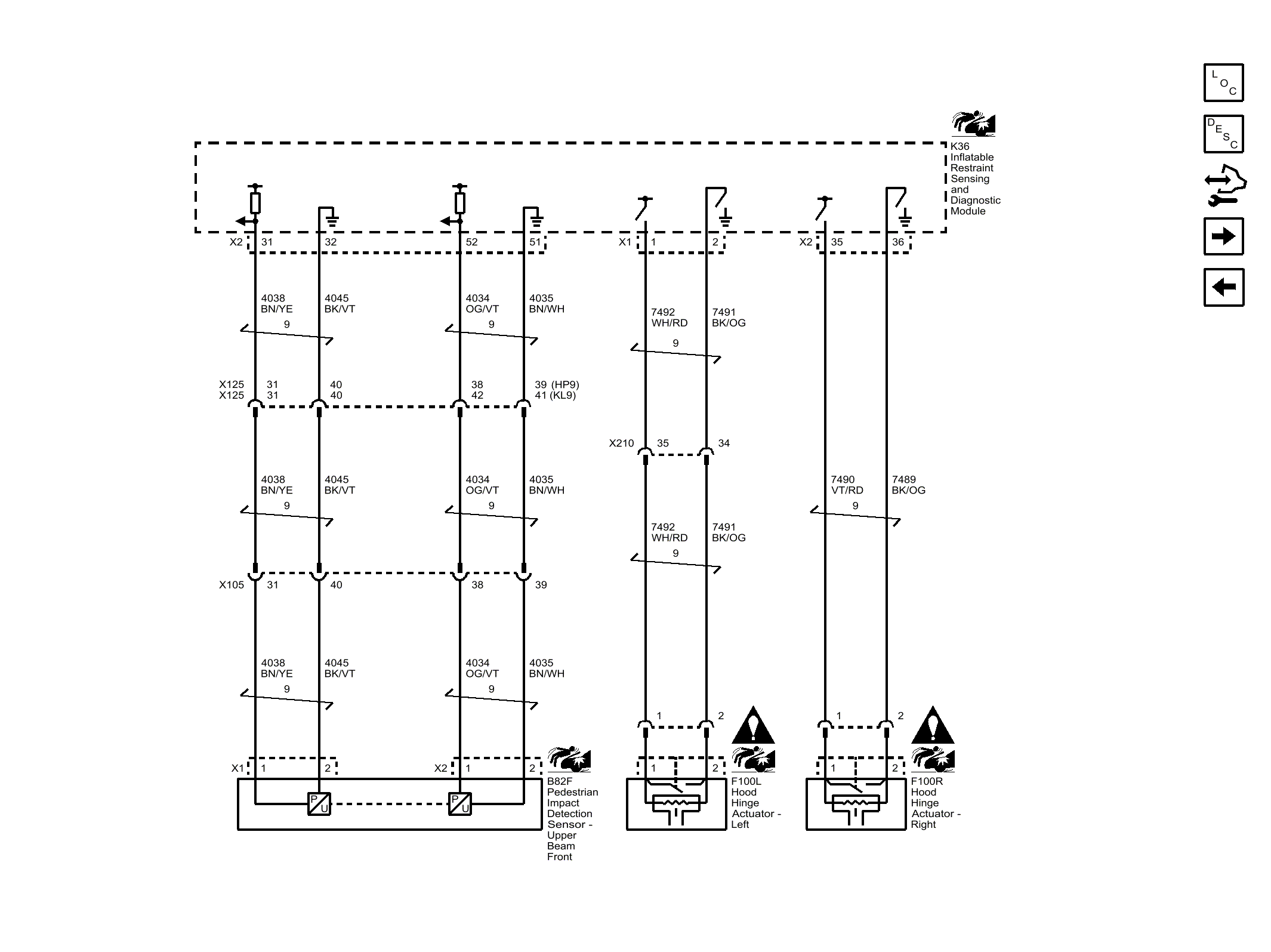

Fig 1: Pedestrian Impact Detection System (B3T)

GM4489911

Courtesy of GENERAL MOTORS COMPANY
