360 Degree Vision - Memory Card Receptacle (XVR) and Module Power, Ground, Serial Data, and Camera Signals (UVH)

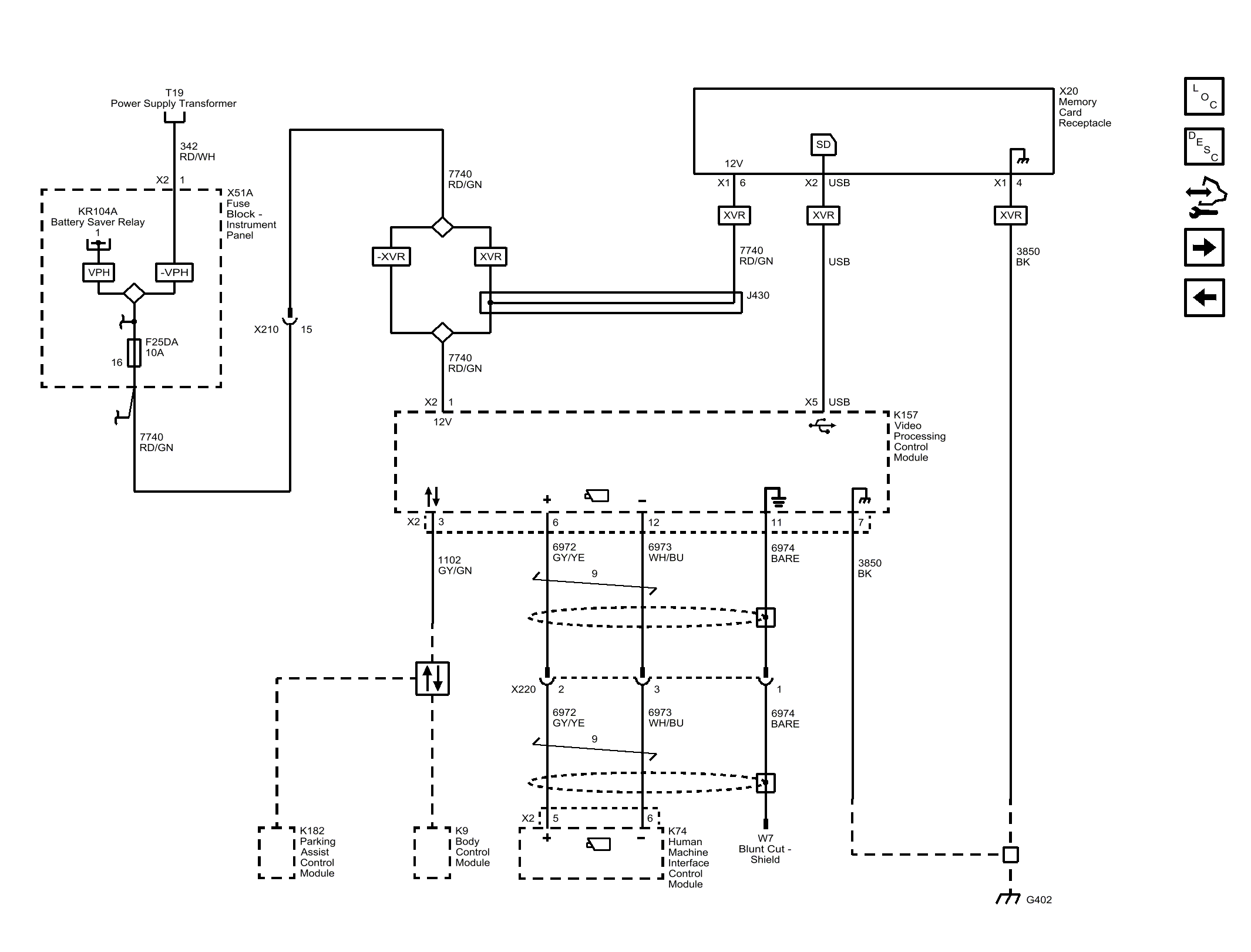

Fig 1: 360 Degree Vision - Memory Card Receptacle (XVR) and Module Power, Ground, Serial Data and Camera Signals (UVH)
GM4489906Courtesy of GENERAL MOTORS COMPANY
