Card Reader Receptacle Replacement - Video

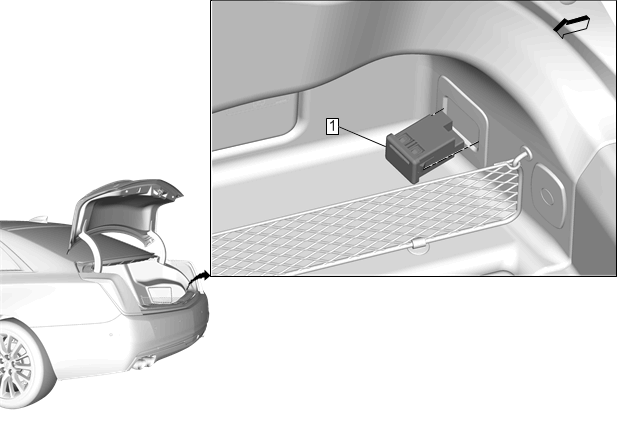

Fig 1: Card Reader Receptacle - Video
GM4249706Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Card Reader Receptacle

Procedure

  1. Use a suitable tool.
  2. Depress the tabs on the receptacle to remove.
  3. Disconnect the electrical connector.
