Keyless Entry - Passive and Keyless Start

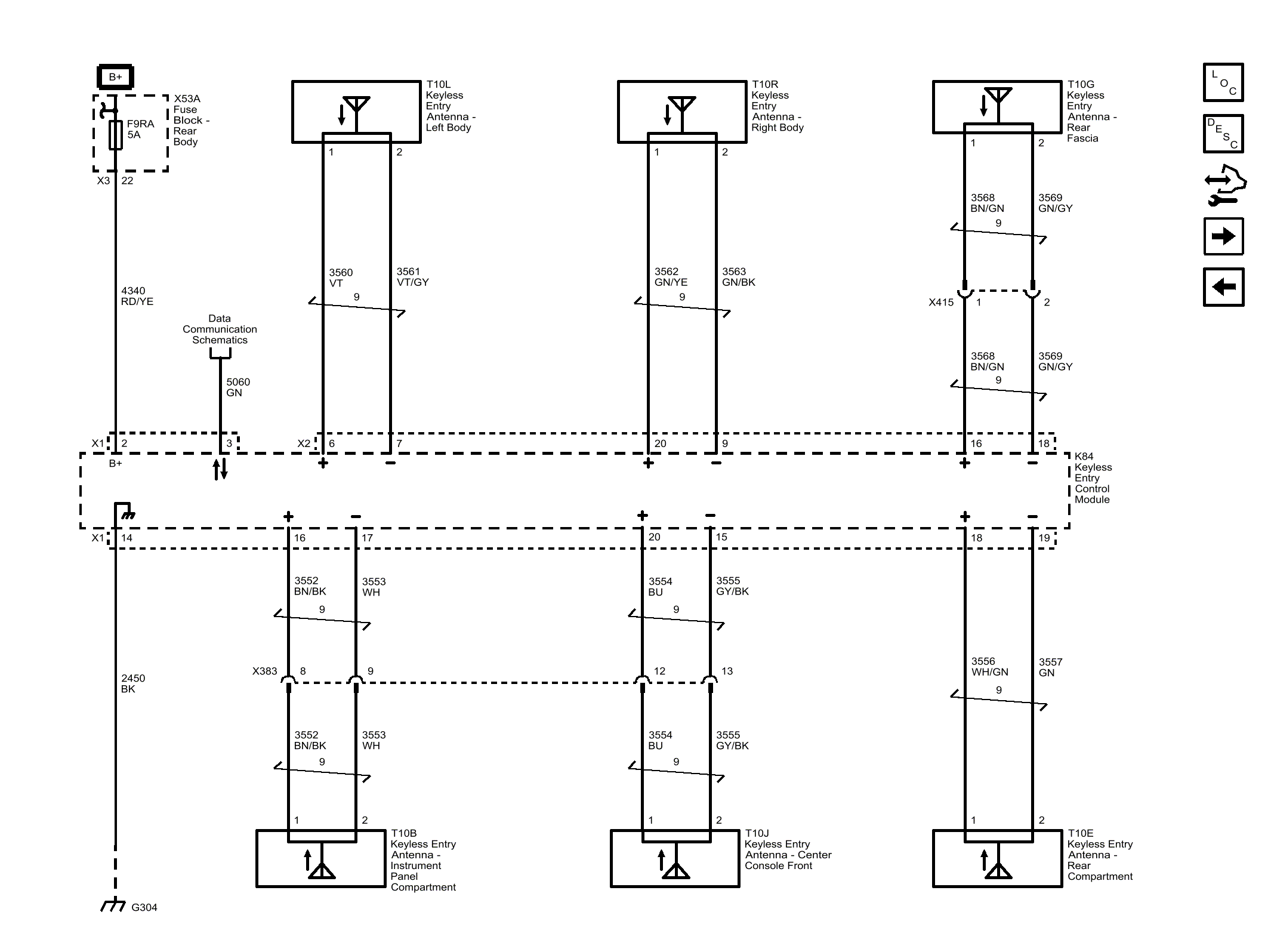

Fig 1: Keyless Entry - Passive and Keyless Start

GM4489918

Courtesy of GENERAL MOTORS COMPANY
