Intake Air Pressure and Temperature Sensor Replacement

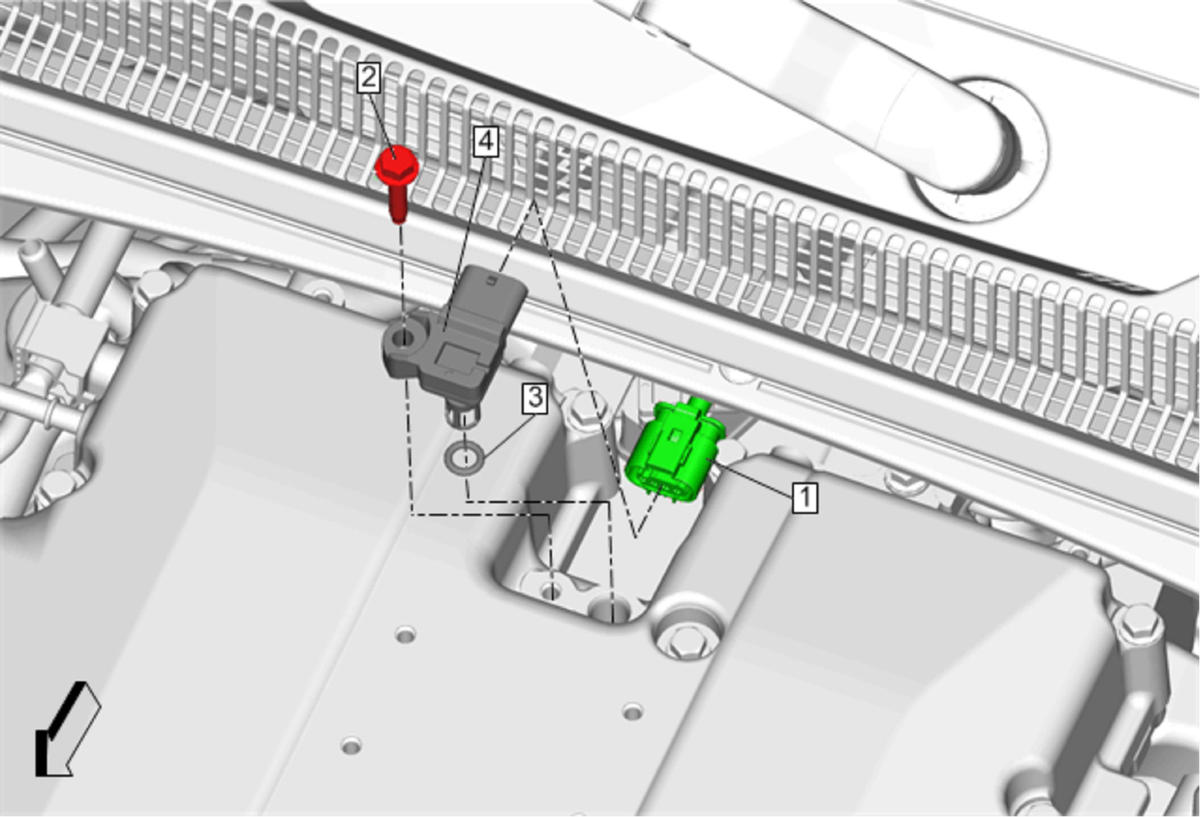

Fig 1: Intake Air Pressure and Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Turbocharger Wastegate Actuator Vacuum Tank. Refer to Turbocharger Wastegate Actuator Vacuum Tank Replacement
1	Electrical Connector
2	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
3	O-Ring Procedure  Replace the O-ring seal.
4	Intake Air Pressure and Temperature Sensor
