Air Cleaner Assembly Replacement (LCV)

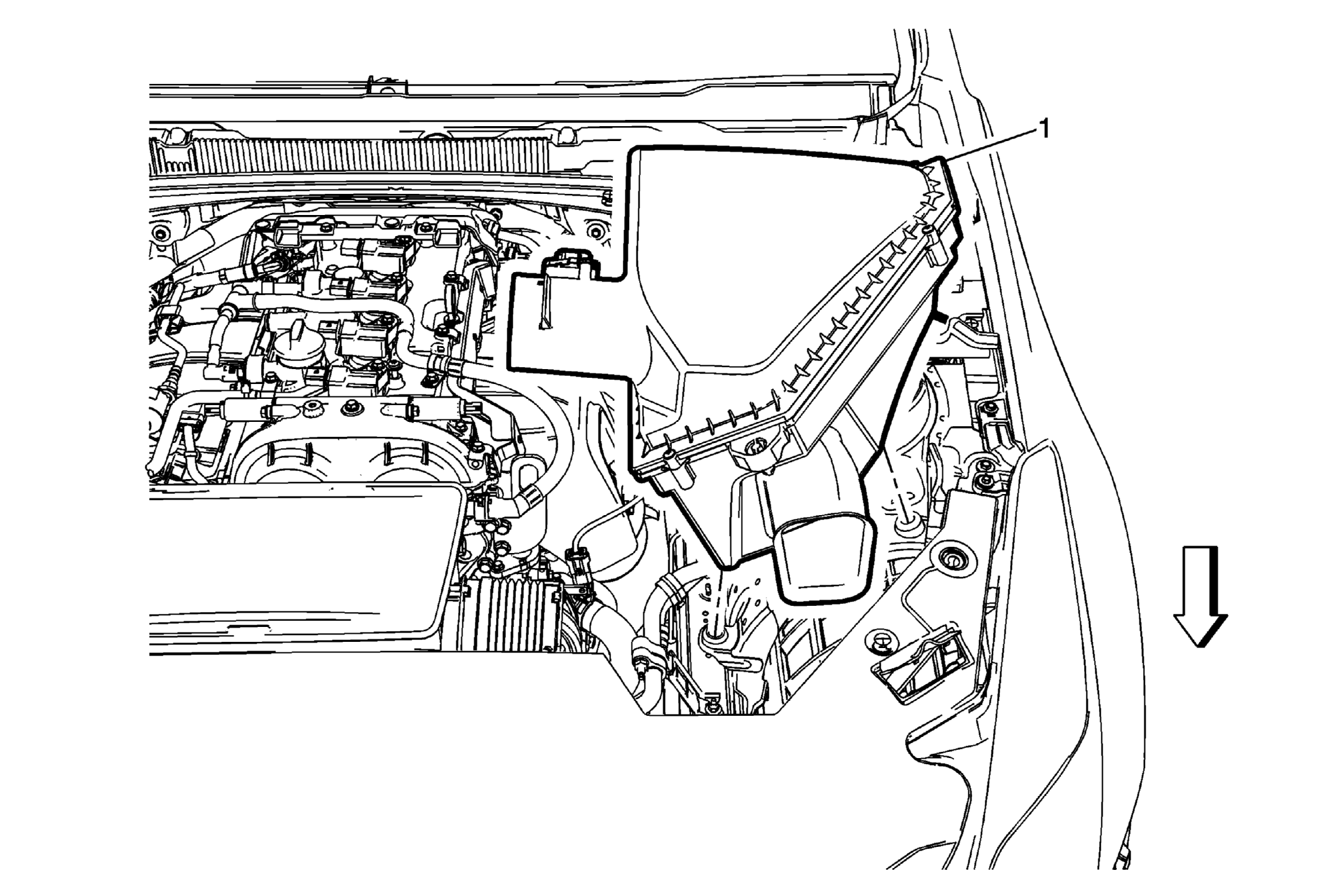

Fig 1: Air Cleaner Assembly (LCV)
GM2822781Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LCV) .
  2. Disconnect the mass airflow sensor electrical connector from the sensor and the air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
