Installation Procedure

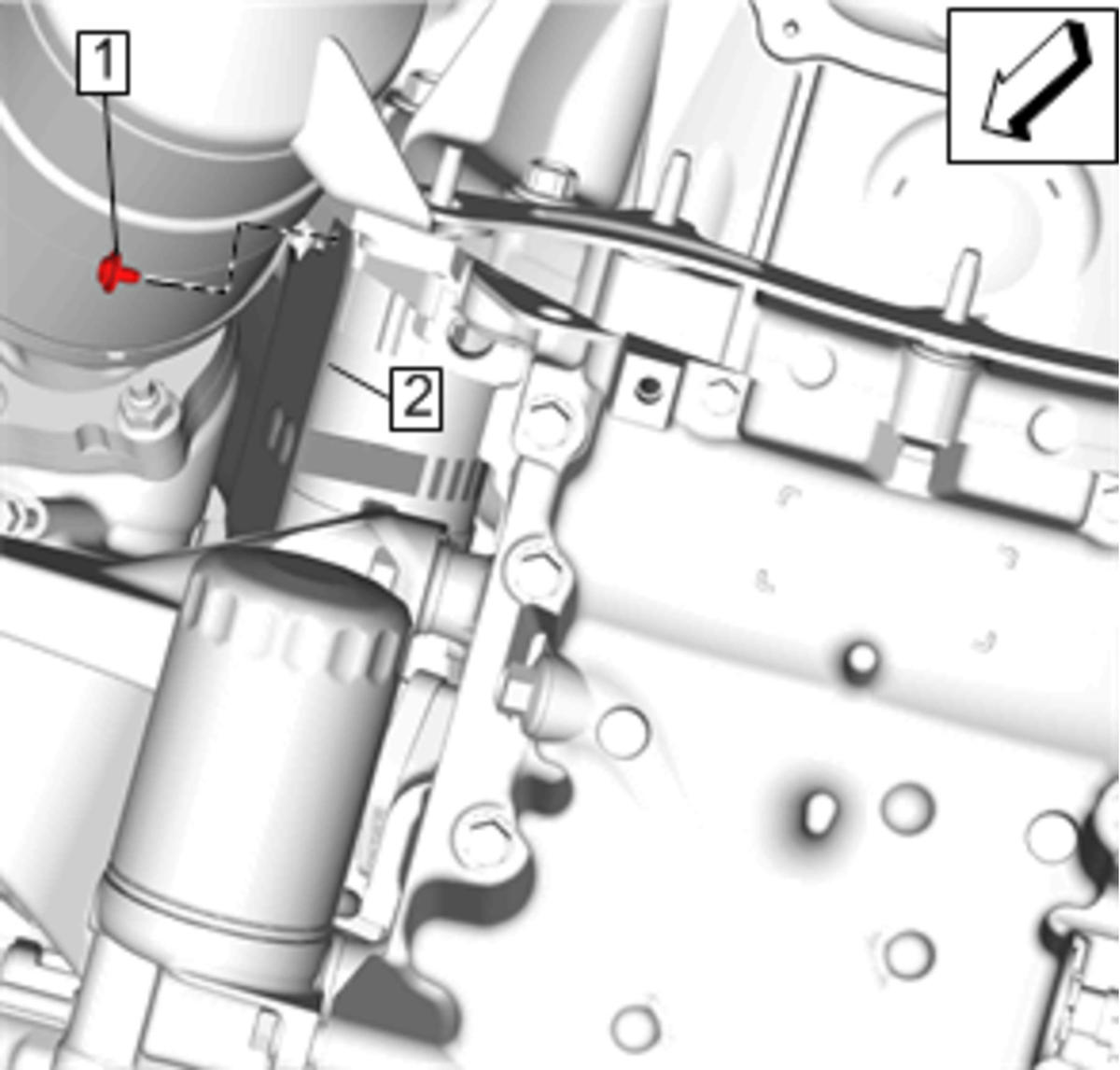

    Fig 1: Starter Heat Shield Fastener
    GM4044624Courtesy of GENERAL MOTORS COMPANY
  1. Install Starter Heat Shield (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten Starter Heat Shield Fastener (1) to 4.7 N.m (42 lb in)
  3. Install Engine Mount Bracket - Left Side. Refer to Engine Mount Bracket Replacement - Left Side (LF4)
  4. Lower the vehicle.
