Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2016 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

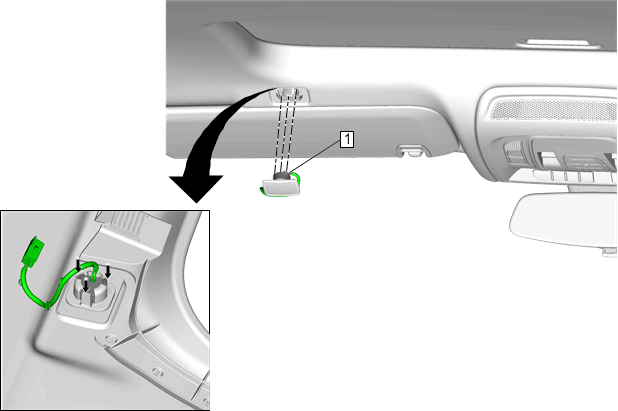

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (Without C3U)Headlining Trim Panel Replacement (With C3U)
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Unlock the (Qty: 3) tabs to release the microphone from the trim plate. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (Without C3U)Headlining Trim Panel Replacement (With C3U)

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Unlock the (Qty: 3) tabs to release the microphone from the trim plate.
Transfer components as necessary.
