Manifold Absolute Pressure Sensor Replacement

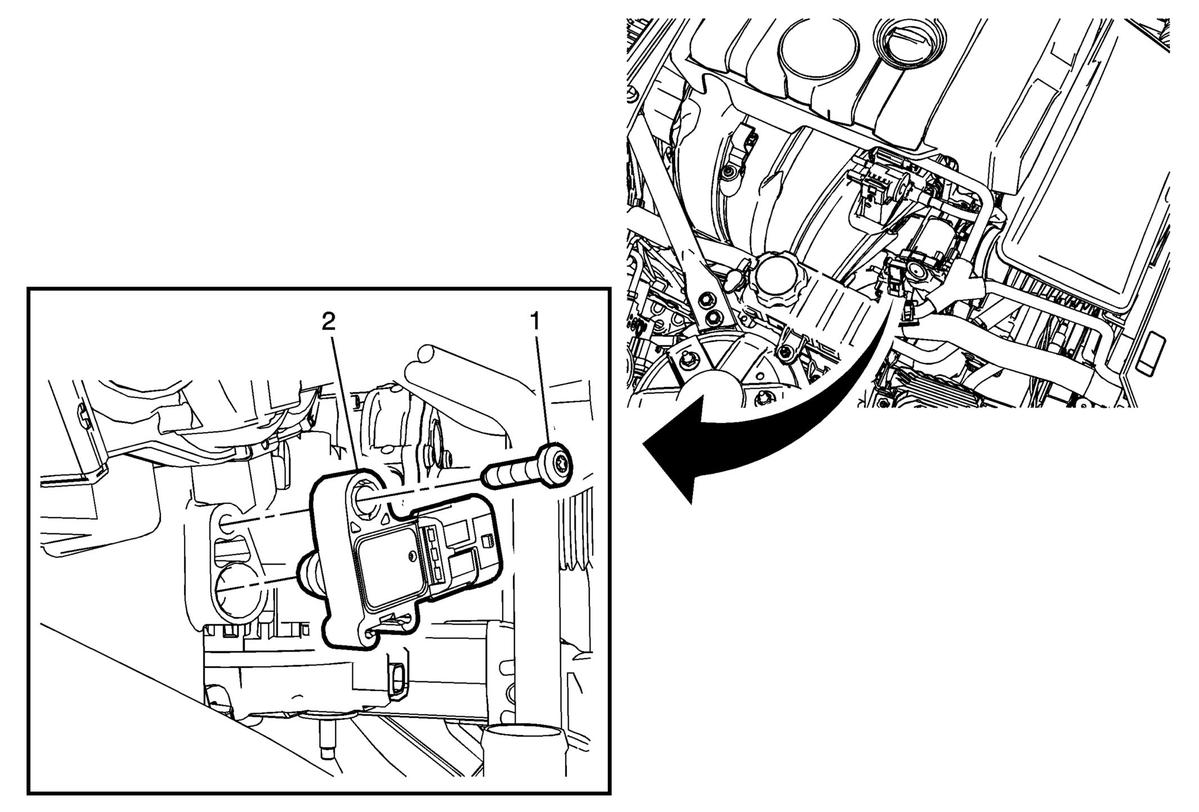

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the engine wiring harness electrical connector from the manifold absolute pressure sensor. Install a NEW seal if reusing the manifold absolute pressure sensor.

Callout

Component Name

Manifold Absolute Pressure Sensor Bolt

CAUTION:

Tighten
5 N.m (44 lb in)

Manifold Absolute Pressure Sensor

Procedure

Disconnect the engine wiring harness electrical connector from the manifold absolute pressure sensor.
Install a NEW seal if reusing the manifold absolute pressure sensor.
