Fuel Tank Protector Replacement

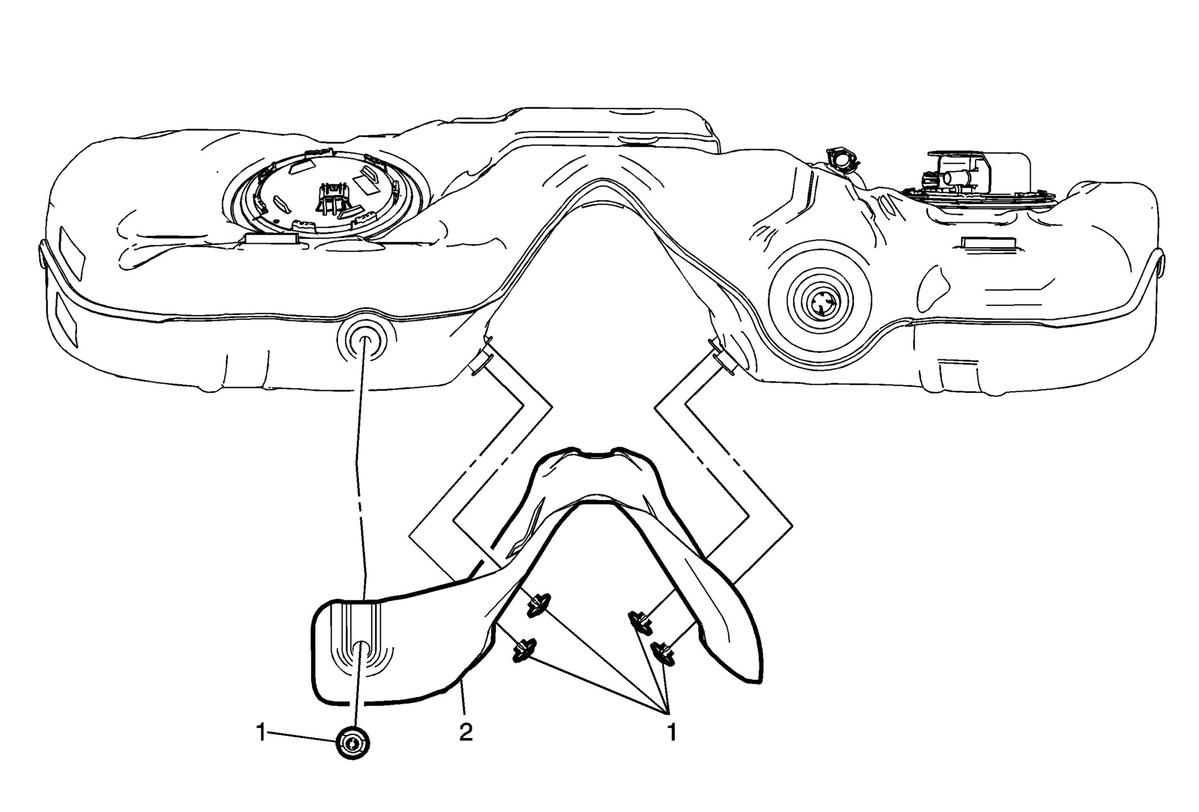

Fig 1: Fuel Tank Shield
GM2811936Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the propeller shaft. Refer to Two-Piece Propeller Shaft Replacement (LTG, LGX, LCV)Two-Piece Propeller Shaft Replacement (LF4) .
1 Fuel Tank Protector Retainers (Qty: 5)
2 Fuel Tank Protector
