Installation Procedure

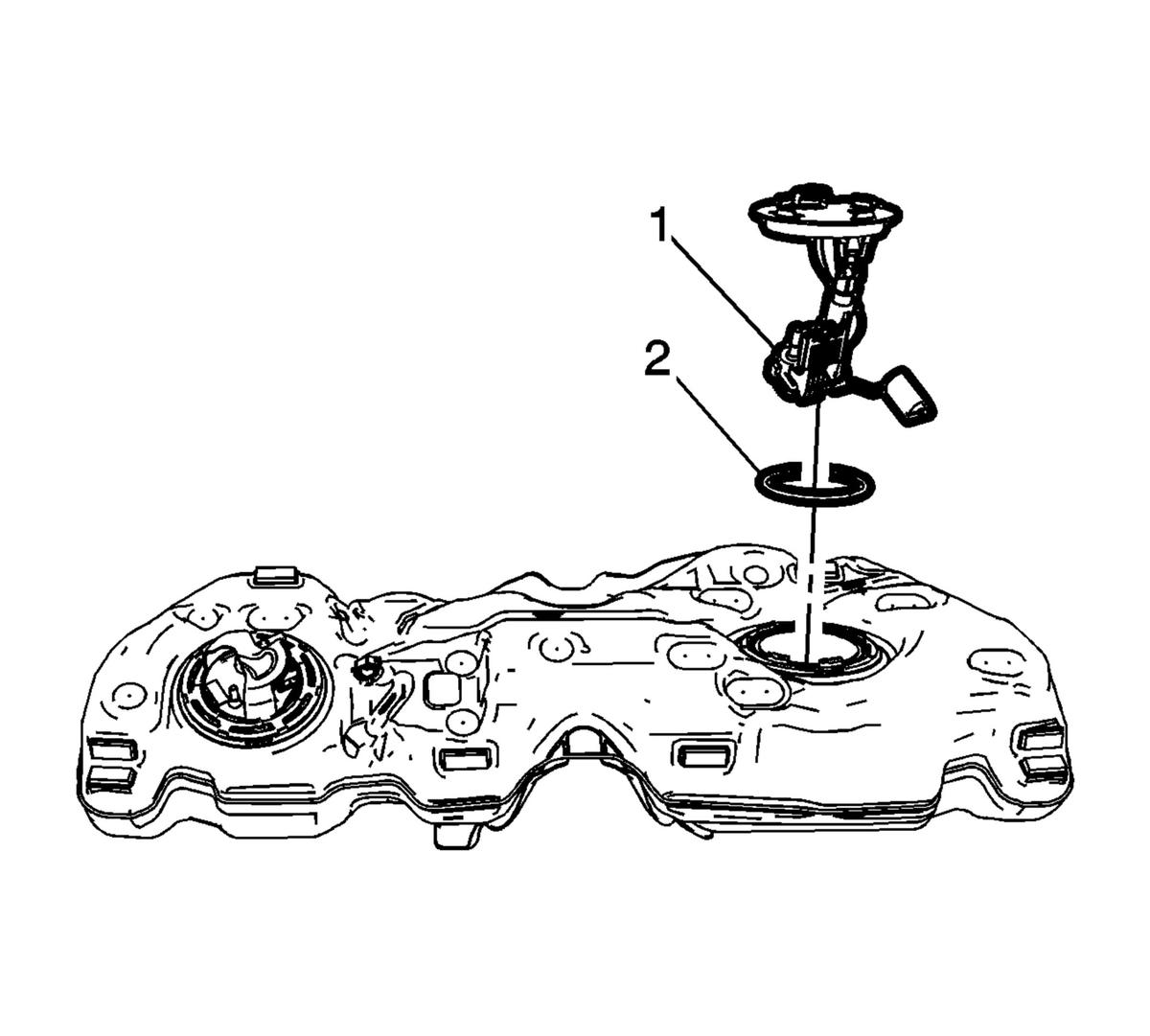

    Fig 1: Fuel Sender Assembly
    GM2811766Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2) and the fuel sender assembly (1).

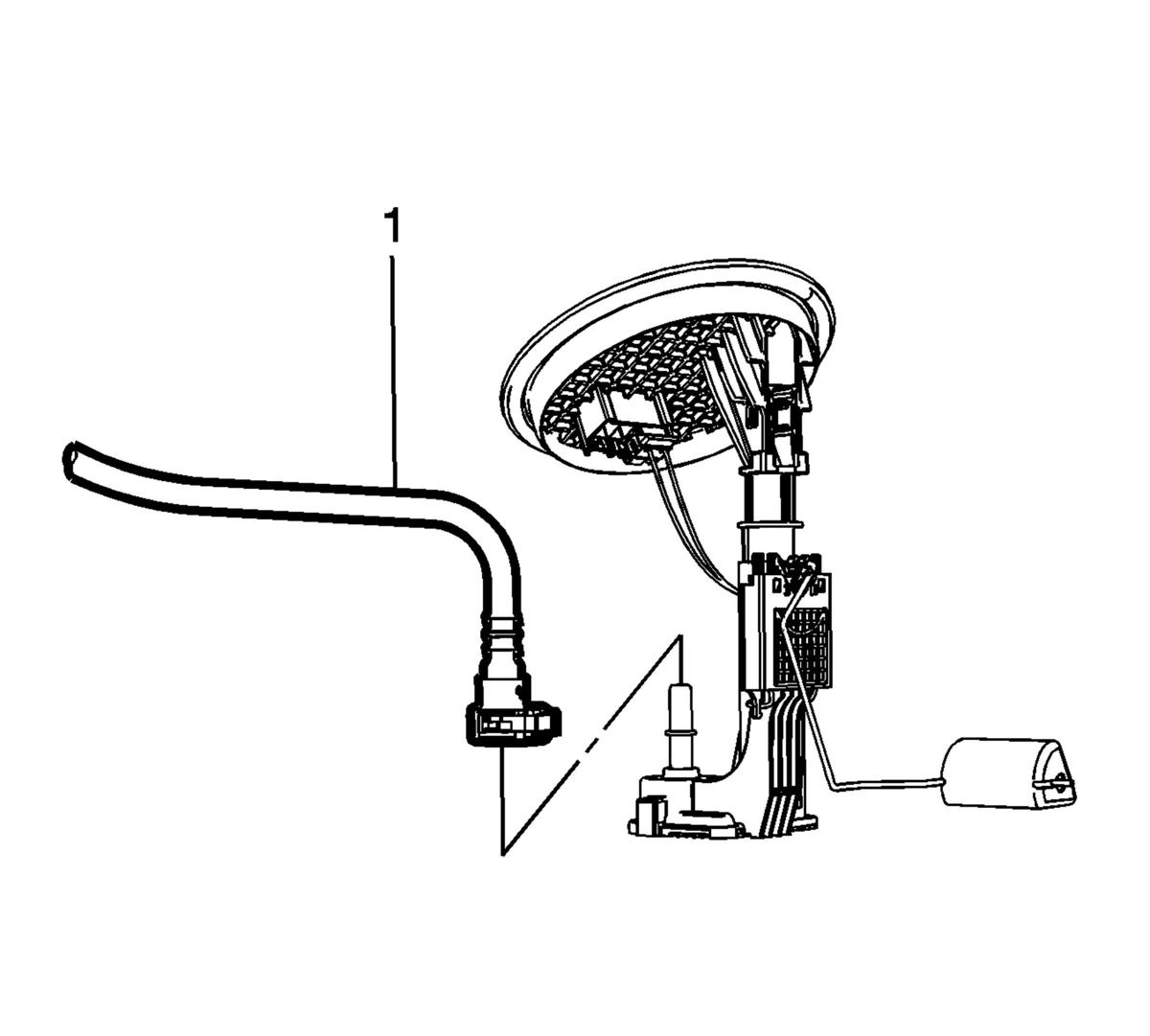

    2. Fig 2: Fuel Sender Assembly Transfer Hose
    GM2811762Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel sender assembly transfer hose (1). Refer to Plastic Collar Quick Connect Fitting Service .

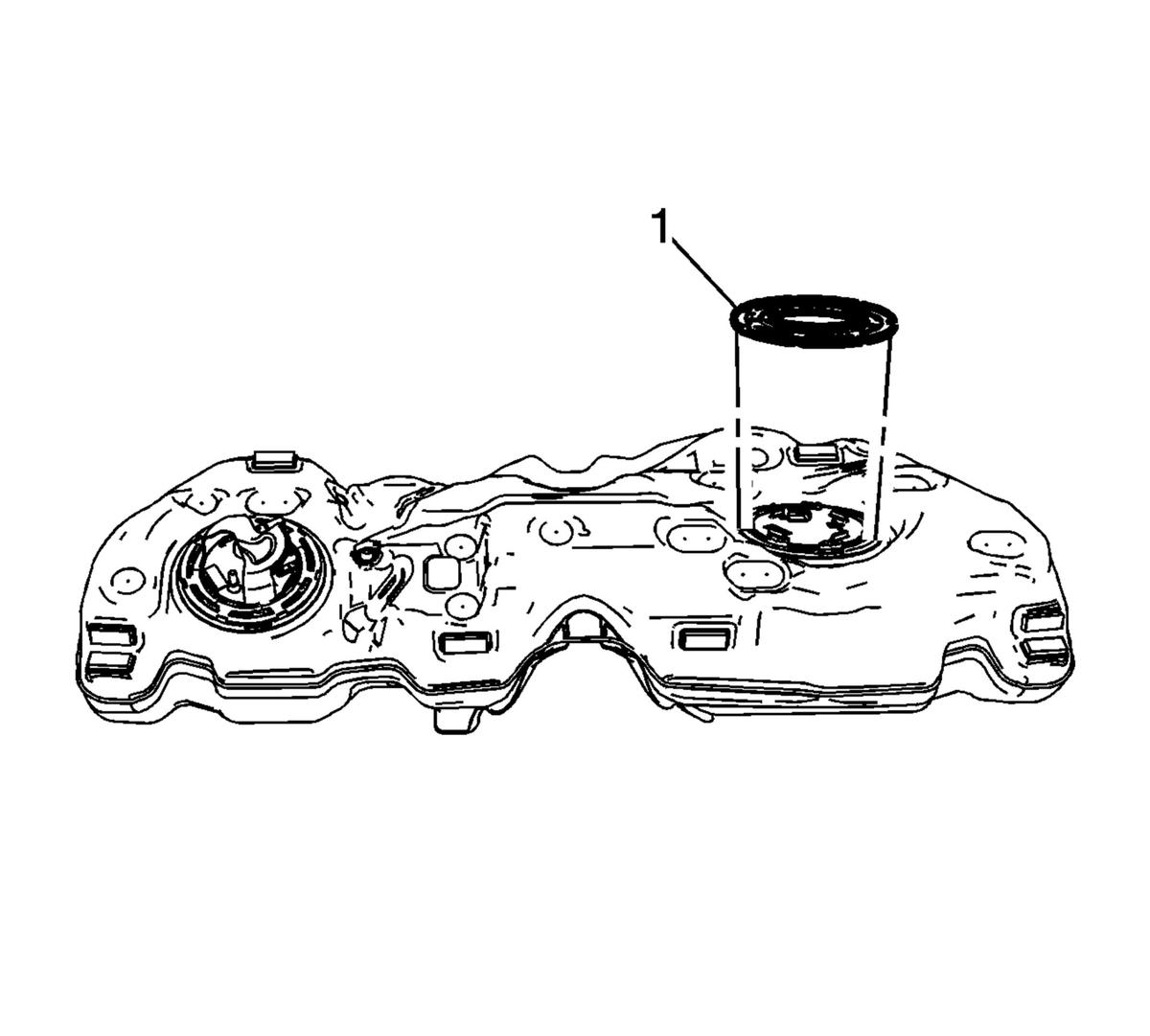

    3. Fig 3: Fuel Sender Assembly Lock Ring
    GM2811776Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH 45722  wrench by turning clockwise and install the lock ring (1).
  4. Connect the fuel sender assembly electrical connector.
  5. Install the fuel tank. Refer to Fuel Tank Replacement (LCV) Fuel Tank Replacement (LTG) .
