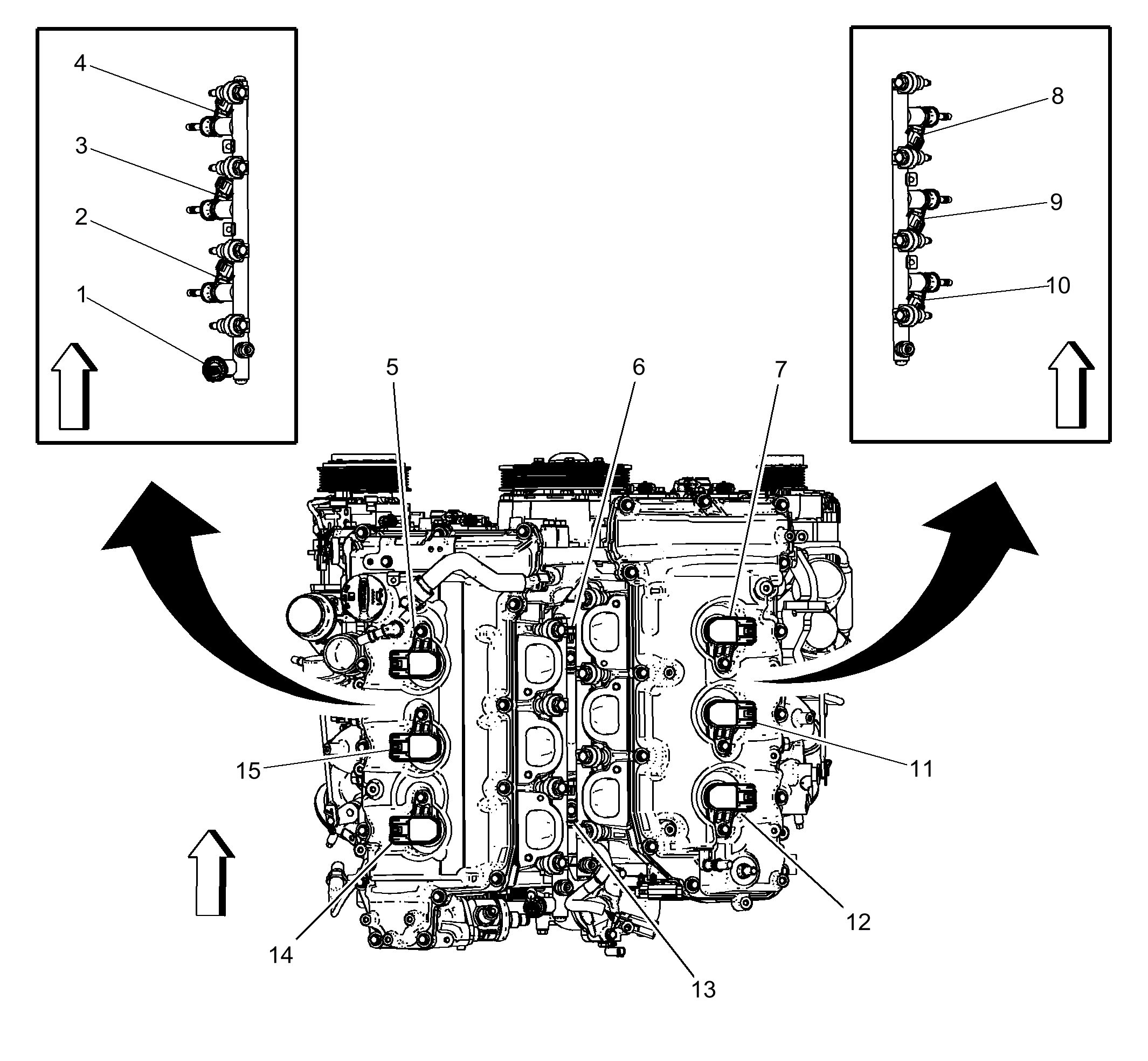

Fuel Rail Components (LF4)
Fuel Rail Components (LF4)
| Items |
|---|
| 1. B47B Fuel Rail Pressure Sensor |
| 2. Q17F Fuel Injector 6 (LF4/LGX) Q17F Fuel Injector 6 (LF4) |
| 3. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LF4) |
| 4. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LF4) |
| 5. T8B Ignition Coil 2 T8B Ignition Coil 2 (LF4) |
| 6. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 7. T8A Ignition Coil 1 T8A Ignition Coil 1 (LF4) |
| 8. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LF4) |
| 9. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LF4) |
| 10. Q17E Fuel Injector 5 (LF4/LGX) Q17E Fuel Injector 5 (LF4) |
| 11. T8C Ignition Coil 3 T8C Ignition Coil 3 (LF4) |
| 12. T8E Ignition Coil 5 (LF4/LGX) T8E Ignition Coil 5 (LF4) |
| 13. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 14. T8F Ignition Coil 6 (LF4/LGX) T8F Ignition Coil 6 (LF4) |
| 15. T8D Ignition Coil 4 T8D Ignition Coil 4 (LF4) |
