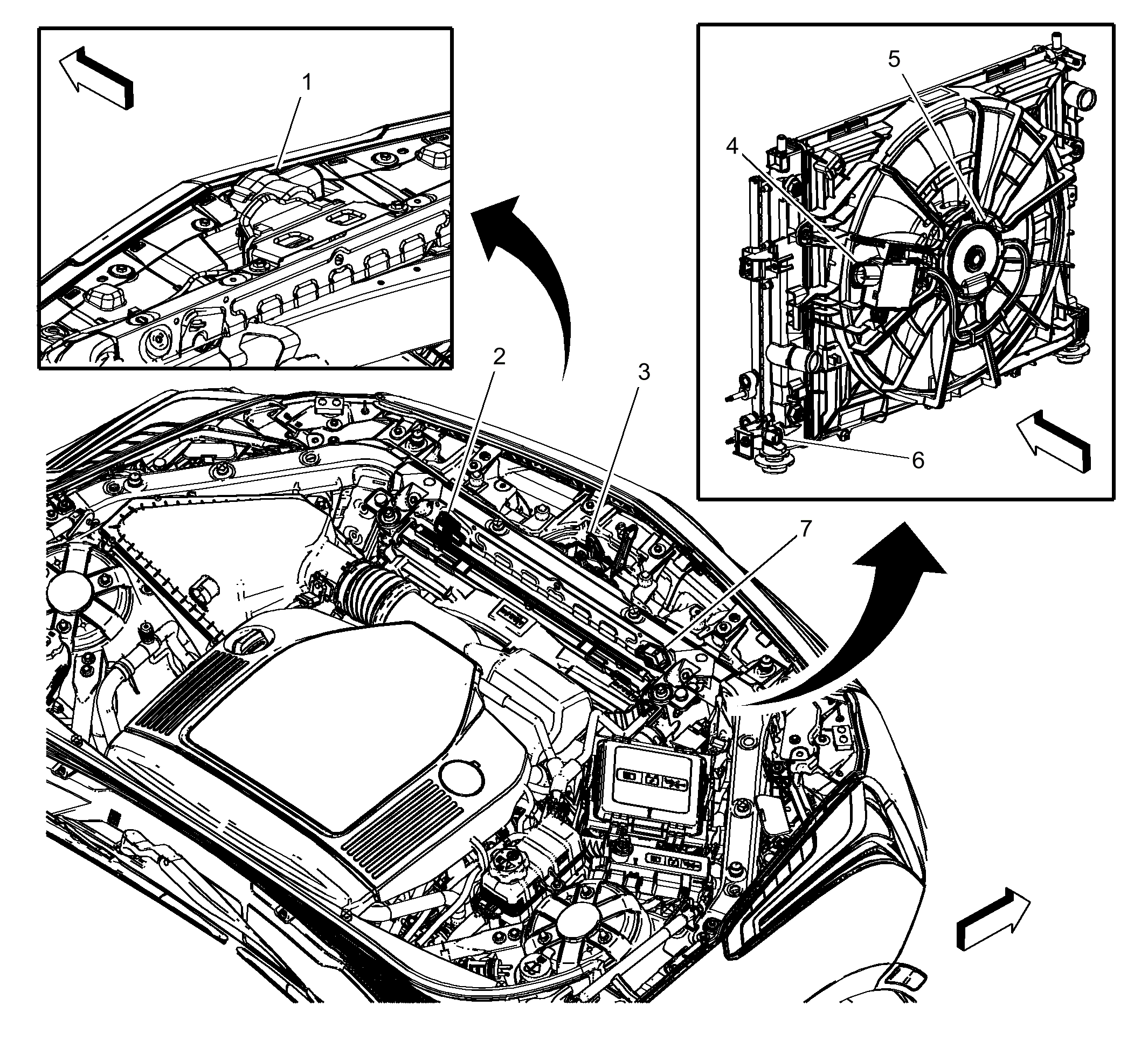

Radiator Support Components
Radiator Support Components
| Items |
|---|
| 1: F125 Hood Latch Actuator (1SV+B3T) F125 Hood Latch Actuator (B3T+1SV) |
| 2: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 3: B55 Hood Ajar Switch B55 Engine Hood Switch |
| 4: K22 Cooling Fan Control Module K22 Cooling Fan Control Module (LGX+Y4Q)/(LTG+V03)K22 Cooling Fan Control Module X1 (LCV/LGX-Y4Q/LTG-V03)K22 Cooling Fan Control Module X1 (LCV/LD4)K22 Cooling Fan Control Module X1 (LGX)K22 Cooling Fan Control Module X2 (LCV/LGX-Y4Q)/(LTG-V03) |
| 5: G10 Cooling Fan Motor G10 Cooling Fan Motor (LF4) |
| 6: B203 Radiator Coolant Temperature Sensor (LCV) B203 Engine Coolant Radiator Temperature Sensor |
| 7: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
