Vehicle Stability Control System Switch Replacement (Automatic)

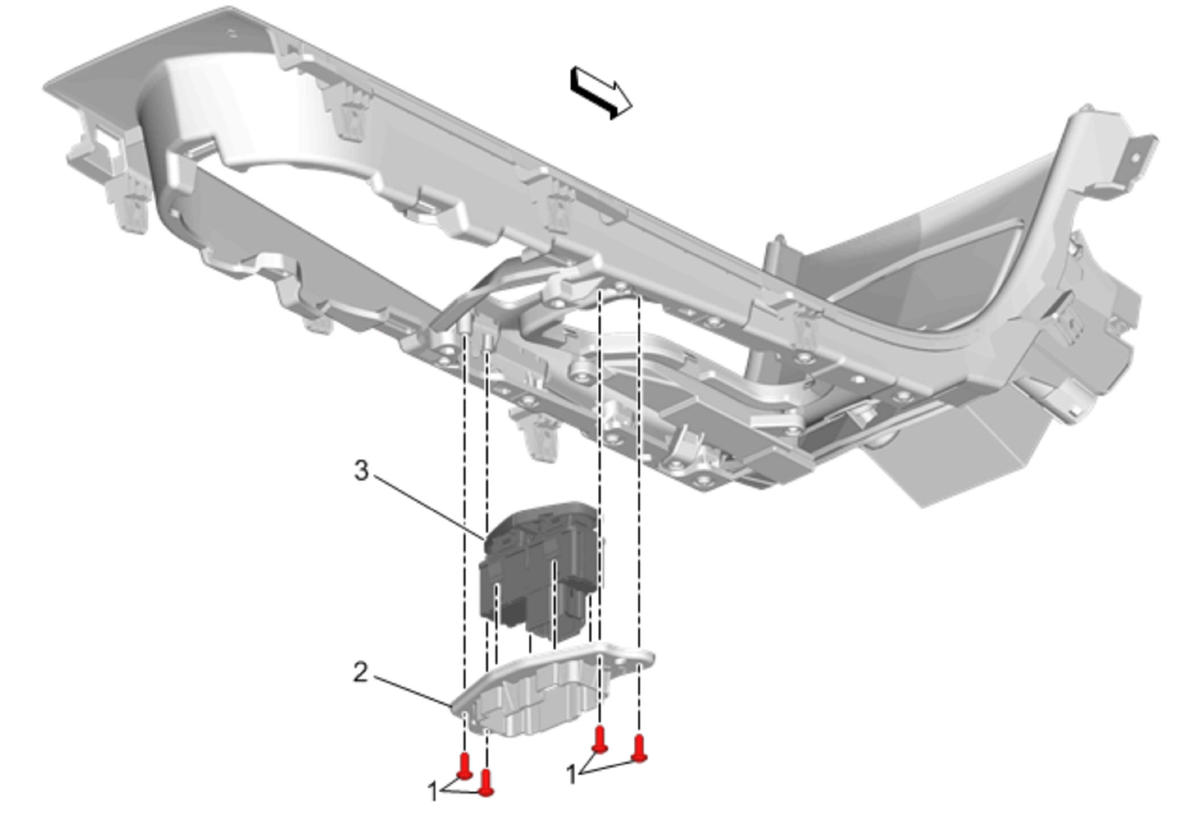

Fig 1: Vehicle Stability Control System Switch (Automatic)
GM4051144Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Refer to Front Floor Console Trim Plate Replacement .
1 Front Floor Console Trim Plate Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
.75 N.m (7 lb in)
2 Front Floor Console Bracket
3 Vehicle Stability Control System Switch

Procedure

  1. Disconnect the electrical connector.
  2. Use a flat bladed plastic trim tool.
