Outside Rearview Mirror Folding Control Module Replacement

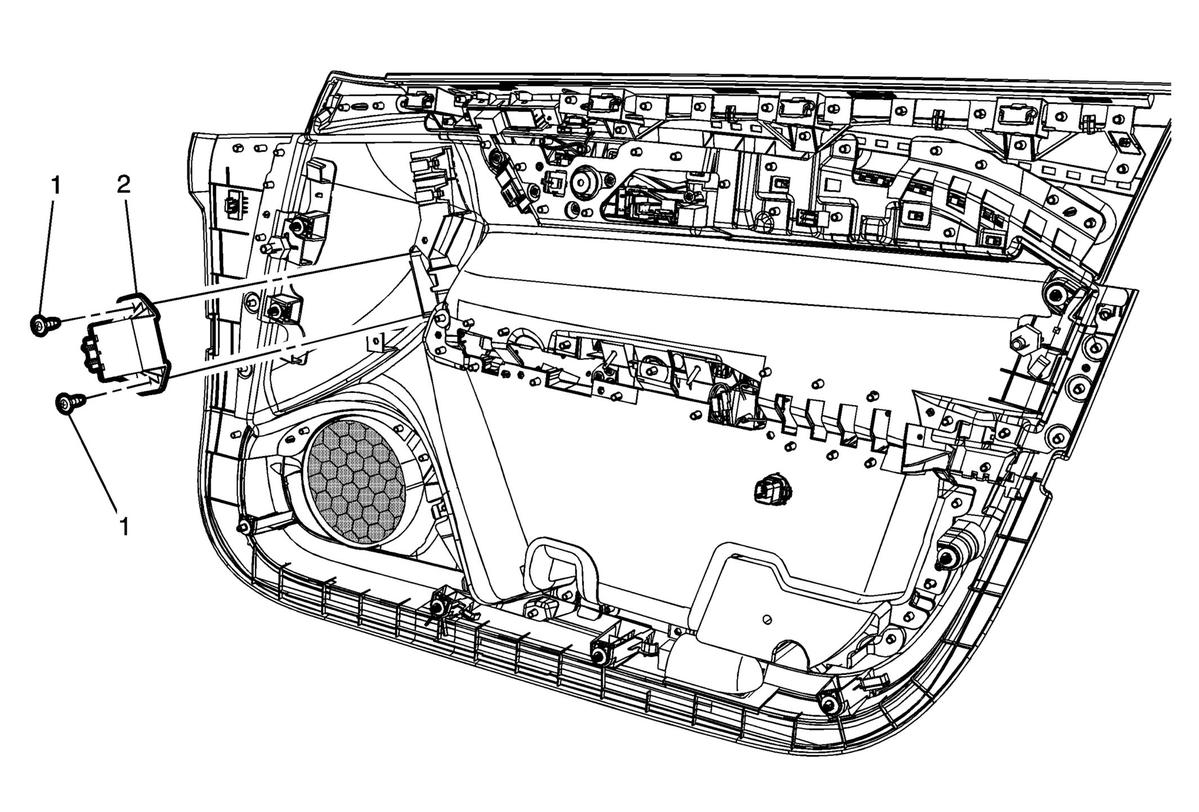

Fig 1: Outside Rearview Mirror Folding Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) .
1	Outside Rearview Mirror Folding Control Module Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Outside Rearview Mirror Folding Control Module Procedure  Disconnect electrical connector.
