Rear Camber Adjustment

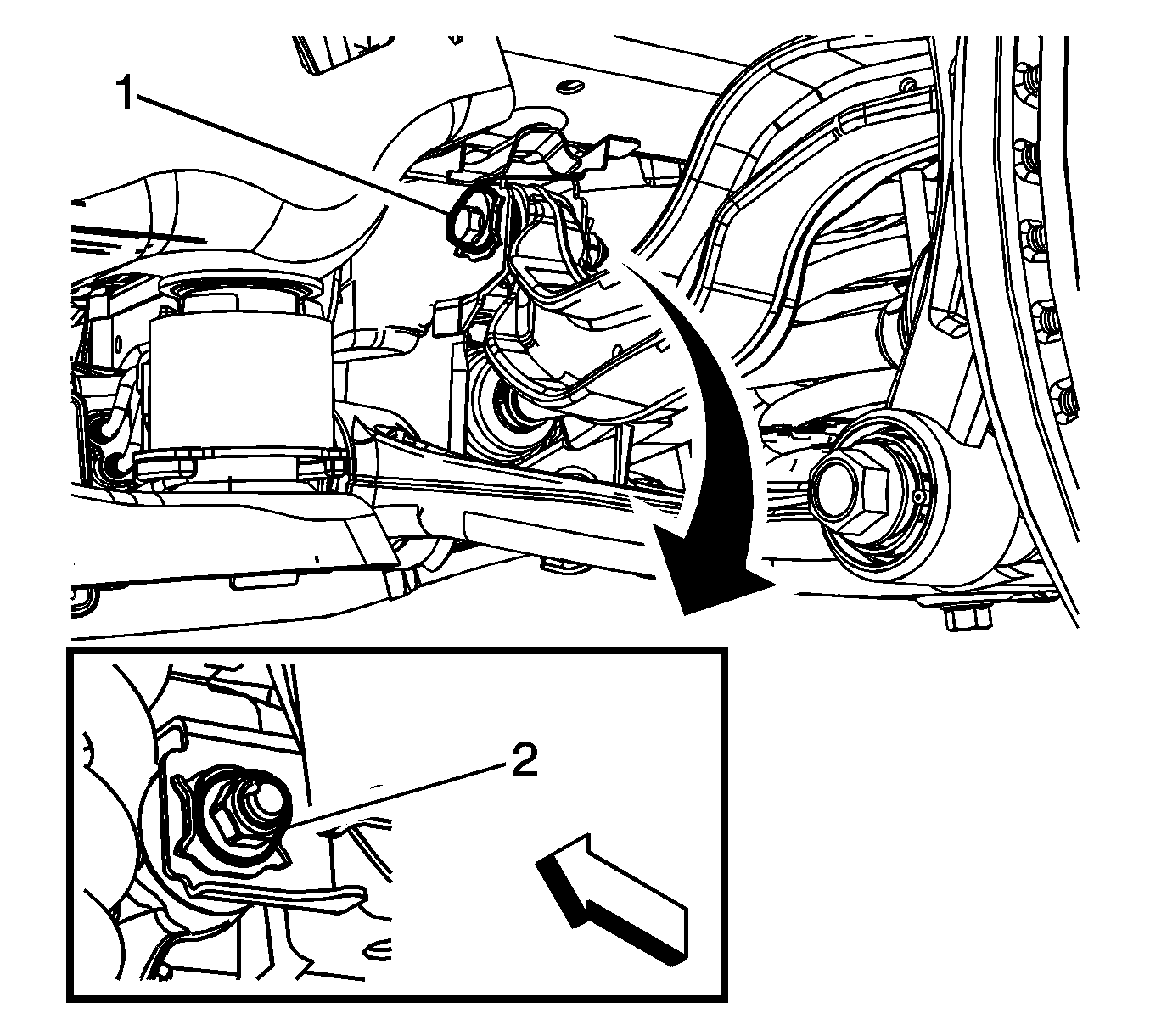

    Fig 1: Rear Suspension Upper Control Arm Bolt And Nut
    GM2778852Courtesy of GENERAL MOTORS COMPANY
  1. Loosen the rear upper control arm bolt (1).
  2. Rotate the rear upper control arm bolt (1) until the proper camber setting is achieved. Refer to Wheel Alignment Specifications
  3. Verify the rear camber specifications and adjust as necessary.
    4. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Hold the rear suspension upper control arm bolt while tightening the rear suspension upper control arm nut.

  4. Tighten the rear suspension upper control arm nut (2). Refer to Upper Control Arm Replacement
